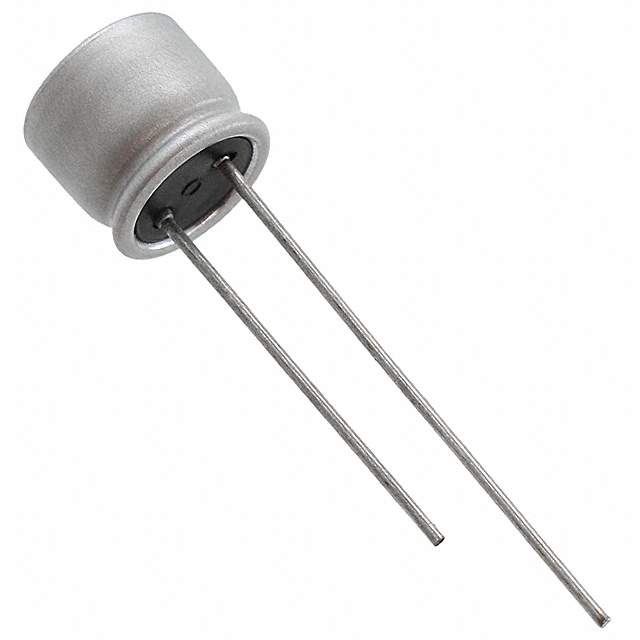

Same model may have multiple batches, images only for reference.

20SEPF180M

Part No 20SEPF180M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 180UF 20% 20V T/H / 180 µF 20 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 5000 Hrs @ 105°C
Datasheet
20SEPF180M Datasheet
Sample
ECAD Module ECAD
rohs

Shipping Information

Shipped from HK warehouse
Expected Shipping Date
Ship today if order in (HKT)
Supplier Lead-Time Call for availability
Estimate shipping fee
Enter your destination to get a shipping estimate
Estimate Shipping Fee
Pricing & Ordering $0.3238 Historical reference price : is the price that a customer announces that it is willing to pay for this component in the previous period, only for reference.
Quantity
Unit Price
Ext. Price
120+
$0.4240
$50.880
290+
$0.3480
$100.920
450+
$0.3370
$151.650
615+
$0.3270
$201.105
795+
$0.3160
$251.220
1,065+
$0.2830
$301.395
* The above prices does not include taxes and freight rates, which will be calculated on the order pages.
Availability: 12,270 pieces
MOQ: 120 pcs
Order Increment : 1 pcs
*Need More Quantity? *Request a Bulk Quantity Quotation?
Estimate shipping
Enter your destination to get a shipping estimate
*

Products specifications

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Type Polymer
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 160 mA @ 120 Hz
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Mounting Through Hole
Case / Package Radial, Can
Base Product Number 20SEPF
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P16314
Standard Package 200
Win Source Part Number 1328527-20SEPF180M
Fake Threat In the Open Market 82

Description

The Panasonic Electronic Components 20SEPF180M is a polymer type aluminum capacitor designed for use in various electronic applications. It has a capacitance of 180 µF with a tolerance of ±20%. The device has a voltage rating of 20V and an ESR (Equivalent Series Resistance) of 25mOhm. It has a ripple current of 160 mA @ 120 Hz and 3.2 A @ 100 kHz. The capacitor is supplied in a radial, can package and is suitable for use in general-purpose applications. It has a height of 0.276" (7.00mm) and a diameter of 0.315" (8.00mm).
