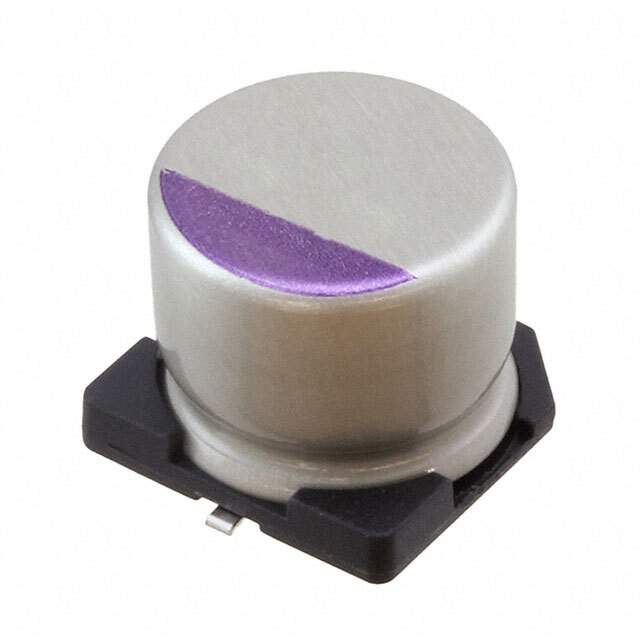

63SXV33M Real Image
Same model may have multiple batches, images only for reference.

63SXV33M

Part No 63SXV33M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 33UF 20% 63V SMD / 33 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Polymer
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 25mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Applications General Purpose
Ripple Current @ Low Frequency 147.5 mA @ 120 Hz
Ripple Current @ High Frequency 2.95 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number 63SXV
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P18934TR,P18934DKR,P18934CT
Standard Package 400
Win Source Part Number 1331067-63SXV33M
Ultra Librarian 3D Model Ultra Librarian 63SXV33M CAD Model

Description

The Panasonic Electronic Components 1331067-63SXV33M is a capacitor that is designed to offer reliable performance.

  • Capacitance: 33 µF
  • Tolerance: ±20%
  • Voltage Rating: 63 V
  • Ripple Current: 147.5 mA @ 120 Hz
  • Ripple Current: 2.95 A @ 100 kHz
  • Height: 0.472" (12.00mm)
  • Mounting: Surface Mount
  • Case/Package: Radial, Can - SMD
  • Compliance: ROHS3
