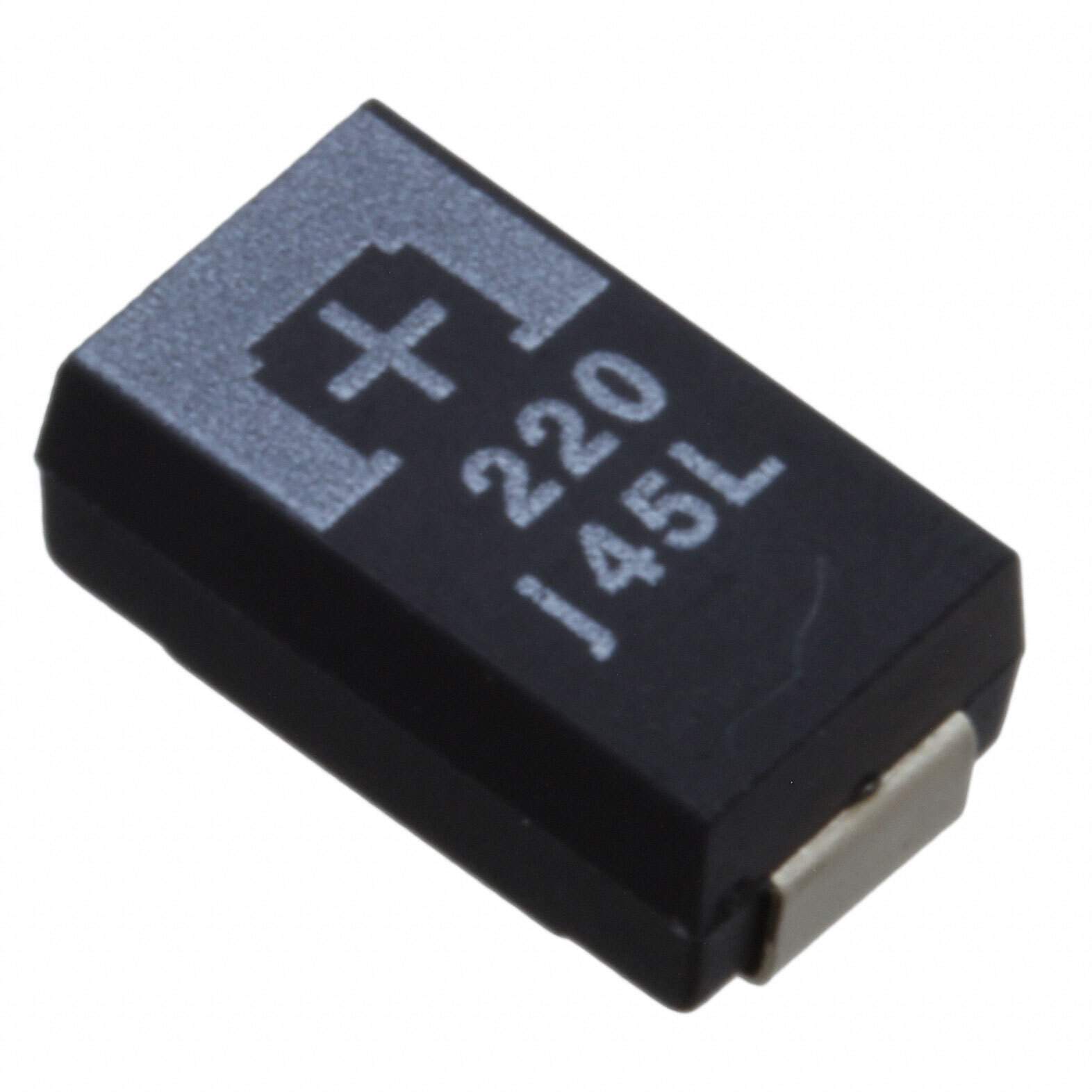

Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel
Capacitance 220μF
Tolerance ±20%
Voltage - Rated 6.3V
Type Molded
ESR (Equivalent Series Resistance) 40mOhm at 100kHz
Temperature Range - Operating -55°C ~ 125°C
Lifetime at Temp. 1000 Hrs at 125°C
Mounting Style SMD
Manufacturer Package 2917 (7343 Metric)
Parts Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.114" (2.90mm)
Manufacturer Size Code D3L
Features General Purpose
Manufacturer Pack Quantity 1
MSL Level 5 (48 Hours)
Win Source Part Number 1129704-6THB220ML
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 6THB220ML CAD Model

Description

The Panasonic Electronic Components electronic component is a limited supply product with medium popularity.

  • Manufacturer: Panasonic Electronic Components
  • Win Source Part Number: 1129704-6THB220ML
  • Packaging: Reel
  • Type: Molded
  • Mounting Style: SMD
  • Features: General purpose
  • Capacitance: 220μF
  • Tolerance: ±20%
  • Voltage-Rated: 6.3V
  • ESR (Equivalent Series Resistance): 40mOhm @ 100kHz
  • Manufacturer Size Code: D3L
  • Temperature Range: -55°C to 125°C
  • Manufacturer Package: 2917 (7343 Metric)
  • Height-Seated (Maximum): 0.114" (2.90mm)
  • Application: Industrial
  • Manufacturer Pack Quantity: 1
  • MSL Level: 5 (48 Hours)
  • Parts Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Lifetime @ Temp.: 1000 Hrs @ 125°C
