Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series POSCAP TPH
Packaging Reel package
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 100 mOhm
Operating Temperature Range -55°C ~ 85°C
Lifetime @ Temp. 1000 Hrs @ 85°C
Mounting SMD
Package 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Size Code A09
Features General
Win Source Part Number 764619-6TPH100MAEA
Popularity Medium
Supply and Demand Status Balance
Family Name TPH
Introduction Date June 12, 2013
ECCN EAR99
Country of Origin Indonesia
Halogen Free Compliant
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian 6TPH100MAEA CAD Model

Description

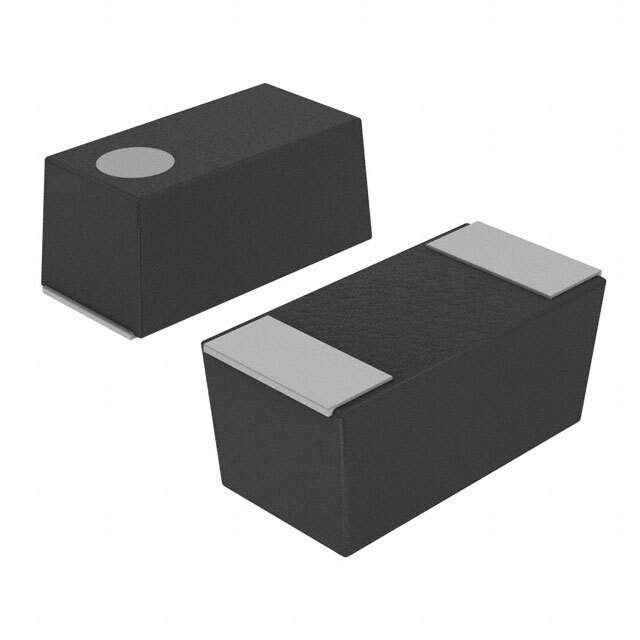

The 6TPH100MAEA is a 100μF, 6.3V POSCAP TPH capacitor from Panasonic Electronic Components.

  • ESR: 100 mOhm
  • Operating Temperature Range: -55°C to 85°C
  • Halogen-Free: Yes
