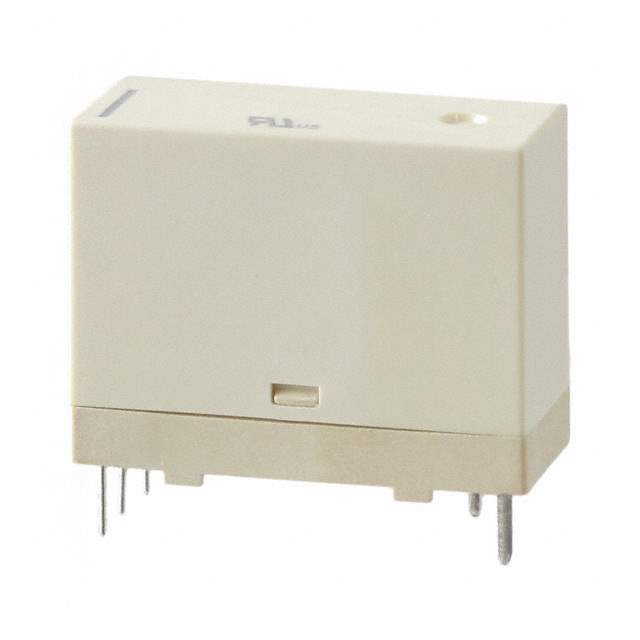

ADW1103W

Name: ADW1103W
Brand: Panasonic
SKU: 1026126
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ADW1103W
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPST 8A 3V / General Purpose Relay SPST-NO (1 Form A) 3VDC Coil Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Power Relays, Over 2 Amps
Mfr	Panasonic Electric Works
Series	DW
Package	Tray
Mounting Type	Through Hole
Coil Voltage	3VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	8 A
Switching Voltage	250VAC - Max
Coil Current	66.7 mA
Coil Type	Latching, Single Coil
Termination Style	PC Pin
Seal Rating	Sealed - Flux Protection
Coil Insulation	Class F
Must Operate Voltage	2.4 VDC
Operate Time	15 ms
Release Time	15 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Tin Oxide (AgSnO)
Relay Type	General Purpose
Coil Resistance	45 Ohms
Base Product Number	ADW1103
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0020
Standard Package	100
Win Source Part Number	1026126-ADW1103W
Ultra Librarian 3D Model	Ultra Librarian ADW1103W CAD Model

Alternative Products

Description

The ADW1103W is a general purpose power relay manufactured by Panasonic Electric Works.

Contact Form: SPST-NO (1 Form A)
Contact Rating (Current): 8A
Switching Voltage: 250VAC - Max
Coil Voltage: 3VDC
Coil Resistance: 45 Ohms
Coil Current: 66.7mA
Must Operate Voltage: 2.4VDC
Operating Temperature Range: -40°C to 85°C
Mounting Type: Through hole
Package: Tray
Usage: Widely used in power relays over 2 Amps
