Same model may have multiple batches, images only for reference.

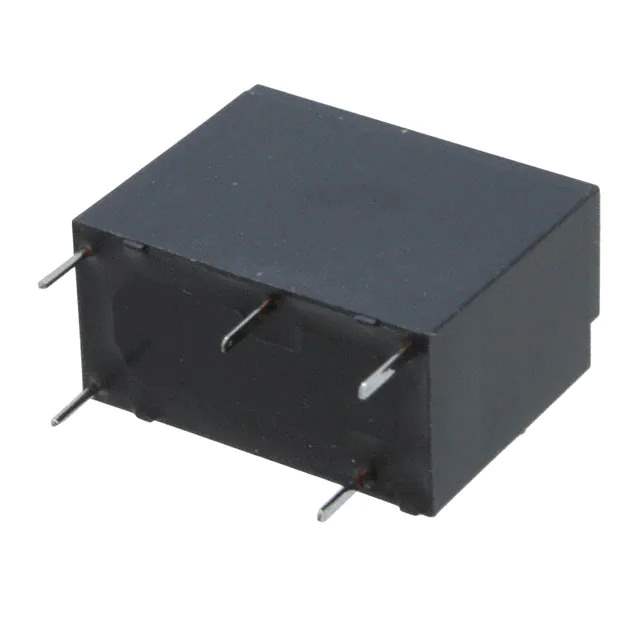

ALQ112 Real Image
Same model may have multiple batches, images only for reference.

ALQ112

Part No ALQ112
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ALQ
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ALQ11
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 849590-ALQ112
Ultra Librarian 3D Model Ultra Librarian ALQ112 CAD Model

Description

The Panasonic ALQ112 is a power relay designed for general-purpose applications by Panasonic.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Switching Voltage: 250VAC (maximum)
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3 mA
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Contact Rating: 10 A
  • Mounting: Through hole
  • Temperature Range: -40°C to 85°C
  • Packaging: Box
  • Standard Package: 100 pcs
  • Product Status: Active
  • Series: ALQ
