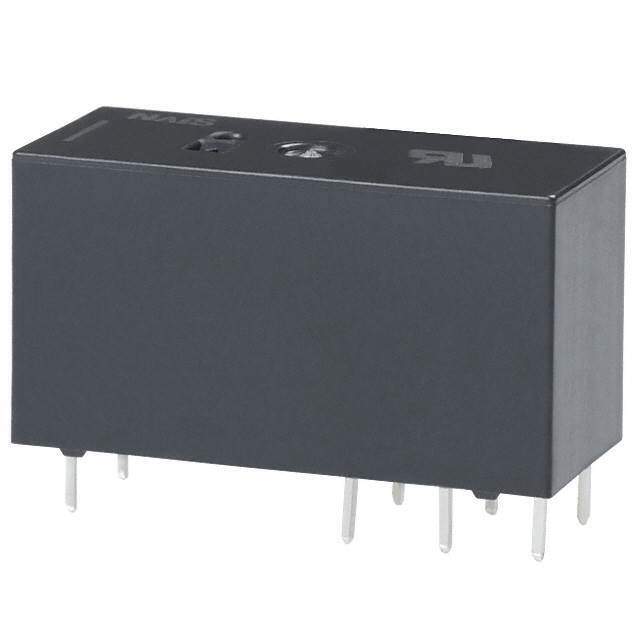

ALZ12F05 Real Image
Same model may have multiple batches, images only for reference.

ALZ12F05

Part No ALZ12F05
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALZ
Package Tube
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 80 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 105°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 63 Ohms
Base Product Number ALZ12F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names ALZ12F05-ND,255-3368
Standard Package 20
Win Source Part Number 1218436-ALZ12F05
Ultra Librarian 3D Model Ultra Librarian ALZ12F05 CAD Model

Description

The Panasonic Electric Works ALZ12F05 is a power relay with a contact rating of 16 A and a switching voltage of 440VAC - Max.

  • Contact Rating: 16 A
  • Switching Voltage: 440VAC - Max
  • Contact Form: SPDT (1 Form C)
  • Sealed: Fully Sealed
  • Mounting: Through Hole
  • Coil Voltage: 5VDC
  • Coil Type: Non-Latching
  • Coil Resistance: 63 Ohms
  • Coil Current: 80 mA
  • Operate Time: 15 ms
  • Release Time: 5 ms
  • Seal Rating: Sealed - Fully
  • Operating Temperature: -40°C ~ 105°C
  • MSL Level: 1 (Unlimited)
  • Coil Insulation: Class F
  • Must Operate Voltage: 3.5 VDC
  • Must Release Voltage: 0.5 VDC
  • Series: ALZ
