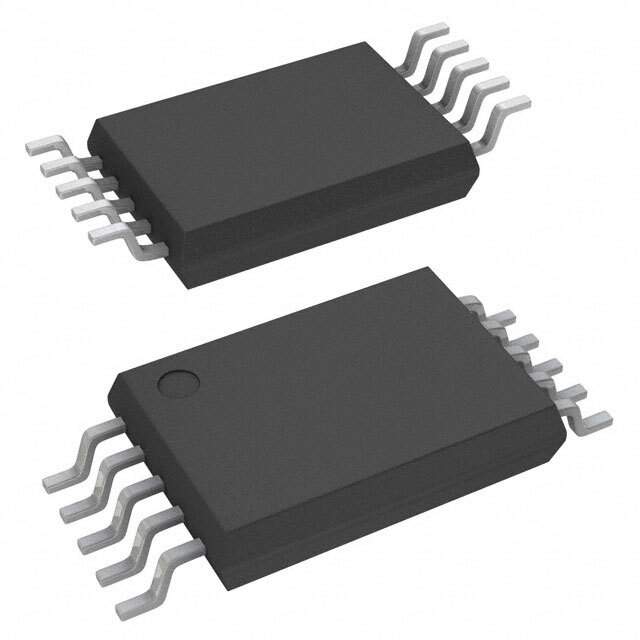

AN8016NSHE1V Real Image
Same model may have multiple batches, images only for reference.

AN8016NSHE1V

Part No AN8016NSHE1V
Manufacturer Panasonic
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BOOST 10-SSOP
Datasheet
AN8016NSHE1V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Up
Topology Boost
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 1.8 V to 14 V
Frequency - Switching 2kHz to 1MHz
Duty Cycle (Max) 80%
Synchronous Rectifier No
Clock Sync No
Control Features Enable, Soft Start
Temperature Range - Operating -30°C to 85°C (TA)
Case / Package 10-SSOP
Win Source Part Number 107720-AN8016NSHE1V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AN8016NSHE1V CAD Model

Description

Product Overview

The AN8016NSHE1V is engineered for high efficiency and superior performance in complex electronic environments. It ensures optimal power management and distribution with minimal footprint.

Features and Benefits

  • High Precision: Delivers stable voltage with minimal deviation.
  • Compact Package: Space-saving design ideal for compact devices.
  • Built-in Protection: Comprehensive safeguard features against overloads.

Applications

  • Portable Electronics
  • Signal Processing Equipment
  • Battery-operated Devices
  • Automated Test Equipment

The AN8016NSHE1V is a smart choice for developers prioritizing efficiency and reliability in voltage regulation.
