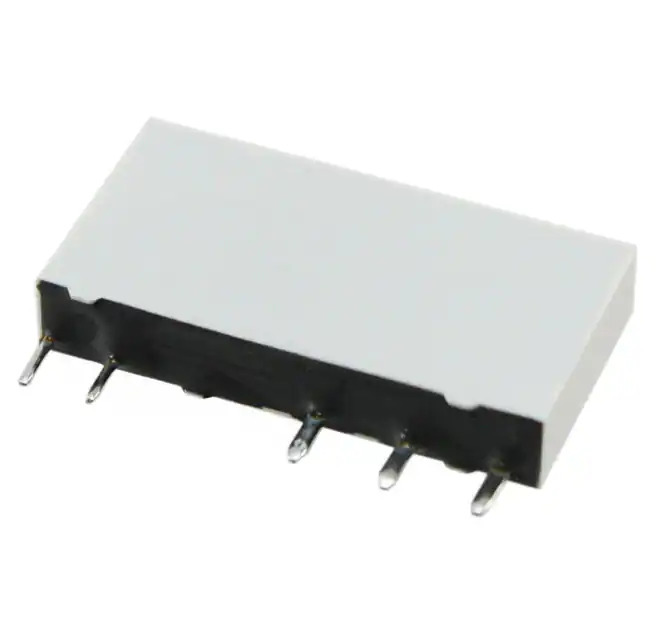

APF30312 Panasonic
Same model may have multiple batches, images only for reference.

APF30312

Part No APF30312
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series APF
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Switching Voltage 250VAC - Max
Coil Current 14.2 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating -
Coil Insulation -
Must Operate Voltage 8.4 VDC
Must Release Voltage 0.6 VDC
Operate Time 8 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type General Purpose
Coil Resistance 847 Ohms
Base Product Number APF303
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1377849-APF30312
Ultra Librarian 3D Model Ultra Librarian APF30312 CAD Model

Description

The 1377849-APF30312 is a power relay from Panasonic Electric Works.

  • Series: APF
  • Coil Voltage: 12VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 6A
  • Switching Voltage: 250VAC
  • Coil Current: 14.2mA
  • Mounting Type: Through Hole
  • Package: Tube
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
