Same model may have multiple batches, images only for reference.

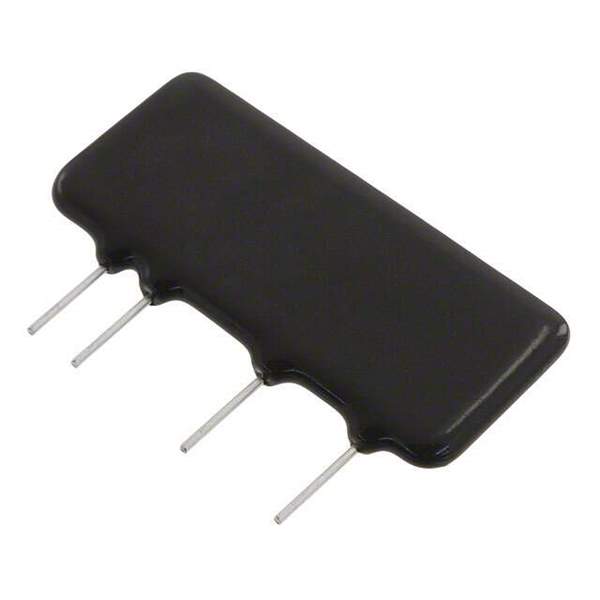

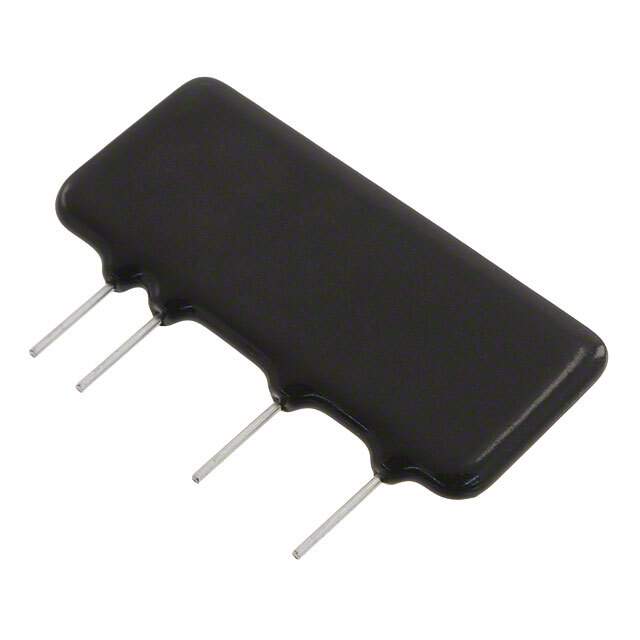

AQ3A2-C1-T5VDC Real Image
Same model may have multiple batches, images only for reference.

AQ3A2-C1-T5VDC

Part No AQ3A2-C1-T5VDC
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 3A 75-250V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Panasonic Electric Works
Packaging Bulk
Mounting Style Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 4 ~ 6VDC
Voltage - Load 75V ~ 250V
Load Current 3A
Termination Style PC Pin
Manufacturer Package 4-SIP
Supplier Device Package 4-SIL
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812544-AQ3A2-C1-T5VDC
Ultra Librarian 3D Model Ultra Librarian AQ3A2-C1-T5VDC CAD Model

Description

The Panasonic Electric Works AQ3A2-C1-T5VDC is an electronic component that is designed to offer reliable performance in electronic circuits.

  • Load Current: 3A
  • Voltage Load Range: 75V ~ 250V
