Same model may have multiple batches, images only for reference.

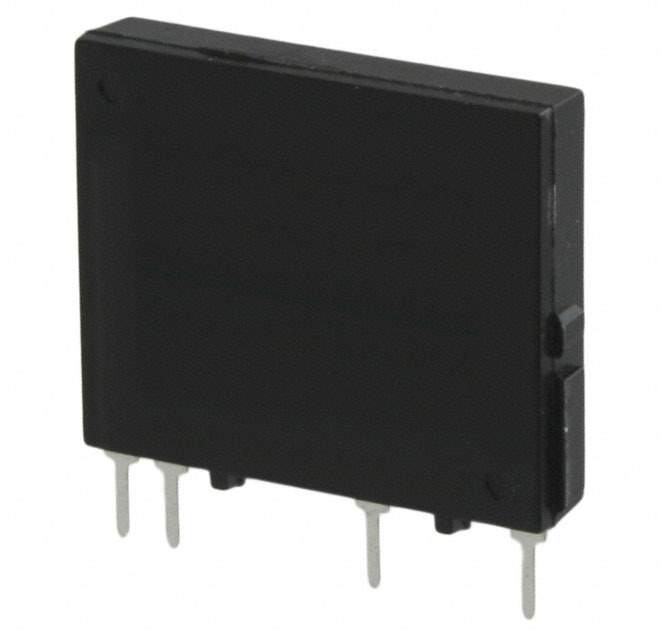

AQG22124 Real Image
Same model may have multiple batches, images only for reference.

AQG22124

Part No AQG22124
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2A 75-264V / Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series AQ-G
Package Bulk
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 19.2 ~ 28.8VDC
Voltage - Load 75 V ~ 264 V
Load Current 2 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number AQG221
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564323-AQG22124
Ultra Librarian 3D Model Ultra Librarian AQG22124 CAD Model

Description

The AQ-G AQG22124 is a solid-state relay manufactured by Panasonic.

  • Manufacturer: Panasonic
  • Series: AQ-G
  • Model: AQG22124
  • Termination Style: PC Pin
  • Mounting: Through-Hole
  • Package: 4-SIP
  • Standard Package Quantity: 20 pcs
  • Input Voltage: 19.2 ~ 28.8VDC
  • Output Type: AC
  • Zero-Crossing: Yes
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 2 A
  • Load Voltage Range: 75 V to 264 V
  • Applications: Industrial
