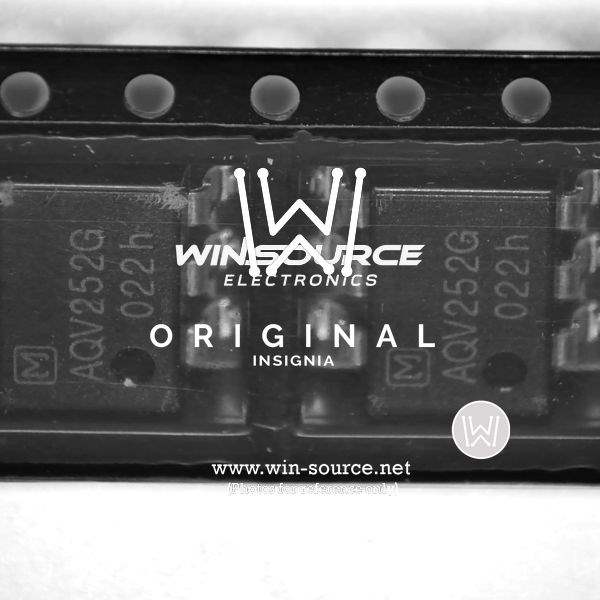

AQV252GAX Real Image AQV252GAX real image15136 AQV252GAX Real Image1 AQV252GAX Real Image2 AQV252GAX Real Image3
Same model may have multiple batches, images only for reference.
AQV252GAX Real Image AQV252GAX real image15136 AQV252GAX Real Image1 AQV252GAX Real Image2 AQV252GAX Real Image3
AQV252GAX Real Image AQV252GAX real image15136 AQV252GAX Real Image1 AQV252GAX Real Image2 AQV252GAX Real Image3
Same model may have multiple batches, images only for reference.

AQV252GAX

Part No AQV252GAX
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO SPST-NO 2500MA 60V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 120 mOhm
Load Current 2.5A
Voltage - Input 1.14VDC
Voltage - Load 0 to 60 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 6-SMD
Relay Type Relay
Win Source Part Number 1018237-AQV252GAX
Family Name AQV252G
Introduction Date May 01, 2006
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Test & Measurement, Power Management, Security
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian AQV252GAX CAD Model

Description

The Panasonic Electric Works AQV252GAX is a SPST-NO (1 Form A) relay with a load current of 2.5A and a voltage rating of 0 to 60 V.

  • Mounting: 6-SMD package
  • Input Voltage: 1.14VDC
  • Output Type: AC/DC
  • Termination: Gull-wing style
  • Category: Relays
  • Status: Active
  • Applications: Industrial, test & measurement, power management, and security
