Same model may have multiple batches, images only for reference.

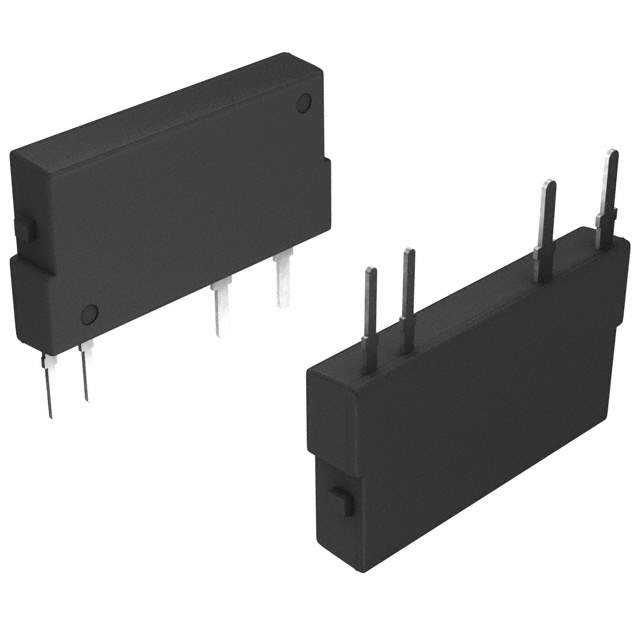

AQZ105 Real Image
Same model may have multiple batches, images only for reference.

AQZ105

Part No AQZ105
Manufacturer Panasonic
Catalog Solid State Relays
Description RELAY OPTO DC 100V 2600MA 4-SIP / Solid State Relay 50mA 1.5V DC-IN 2.6A 80V DC-OUT 4-Pin SIL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series PhotoMOS AQZ
Packaging Tube
Circuit SPST-NO (1 Form A)
Output Type DC
On-State Resistance (Maximum) 170 mOhm
Load Current 2.6A
Voltage - Input 1.16VDC
Voltage - Load 0 ~ 100 V
Mounting Style Through Hole
Termination Style PC Pin
Package 4-SIP
Manufacturer Package 4-SIL
Relay Type Relay
Win Source Part Number 768775-AQZ105
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Family Name AQZ105
Introduction Date May 01, 2006
ECCN EAR99
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian AQZ105 CAD Model

Description

The Panasonic Electric Works PhotoMOS AQZ105 relay is a high-quality component that is suitable for various applications.

  • Circuit Type: SPST-NO (1 Form A)
  • Load Current: 2.6A
  • Voltage Load: 0 ~ 100 V
  • Package Type: 4-SIP
  • Mounting Style: Through Hole
  • On-State Resistance: 170 mOhm
  • Compliance: Halogen-free
  • Estimated EOL Date: 2029
  • Quantity Per Package: 25
