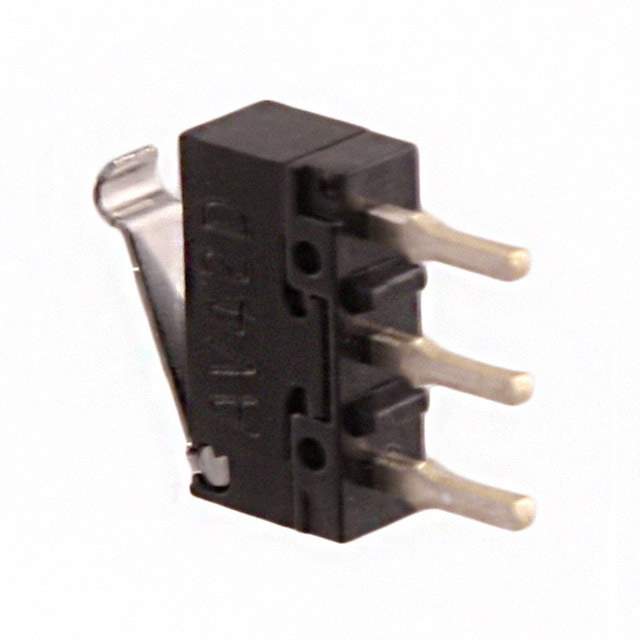

AV4444 Real Image
Same model may have multiple batches, images only for reference.

AV4444

Part No AV4444
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 500MA 30V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electric Works
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 30V
Actuator Type Lever, Simulated Roller
Mounting Style Through Hole
Termination Style PC Pin
Operating Force 29gf
Pretravel 0.087" (2.2mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.011" (0.3mm)
Temperature Range - Operating -25°C ~ 80°C
Operating Position 0.240" (6.1mm)
Electrical Life 20,000 Cycles
Mechanical Life 300,000 Cycles
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 729702-AV4444
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AV4444 CAD Model

Description

The 729702-AV4444 is a single-pole double-throw (SPDT) switch from Panasonic Electric Works.

  • Voltage Rating: 30V
  • Current Rating: 500mA (DC)
  • Actuator Type: Lever, Simulated Roller
  • Operating Force: 29gf
  • Mechanical Life: 300,000 cycles
  • Electrical Life: 20,000 cycles
  • Mounting Style: Through-hole
  • Termination Style: PC pin
  • Temperature Range: -25°C to 80°C
  • Popularity: Low
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 100
