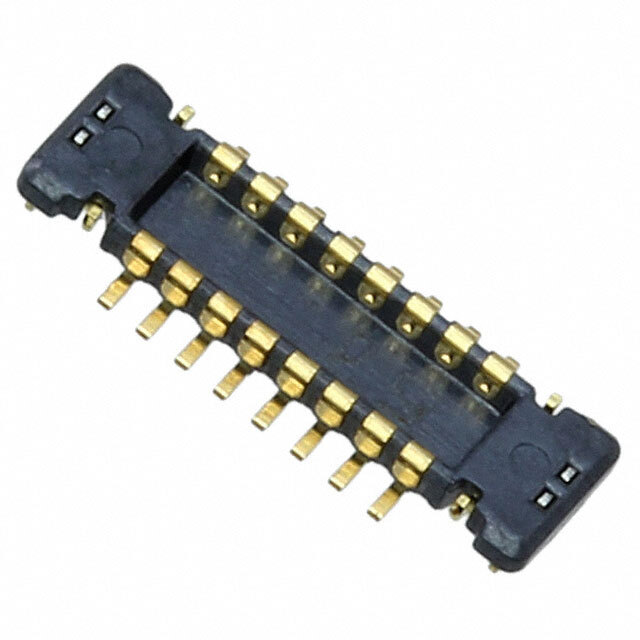

AXG8160J4
Same model may have multiple batches, images only for reference.

AXG8160J4

Part No AXG8160J4
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN PLUG 16POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A35US
Package Tape & Reel
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 18 (16 + 2 Power)
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.46mm)
Base Product Number AXG816
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862749-AXG8160J4
Ultra Librarian 3D Model Ultra Librarian AXG8160J4 CAD Model

Description

The Panasonic A35US series is a high-quality rectangular connector array designed for board-to-board connections.

  • Positions: 18 (16 + 2 Power)
  • Pitch: 0.014" (0.35mm)
  • Connector: Plug
  • Contacts: Outer Shroud
  • Feature: Solder Retention
  • Mounting: Surface Mount
  • Height Above Board: 0.018" (0.46mm)
  • Packaging: Tape & Reel
  • Package Size: 10,000 pcs
  • Series: AXG816
  • Status: Obsolete
