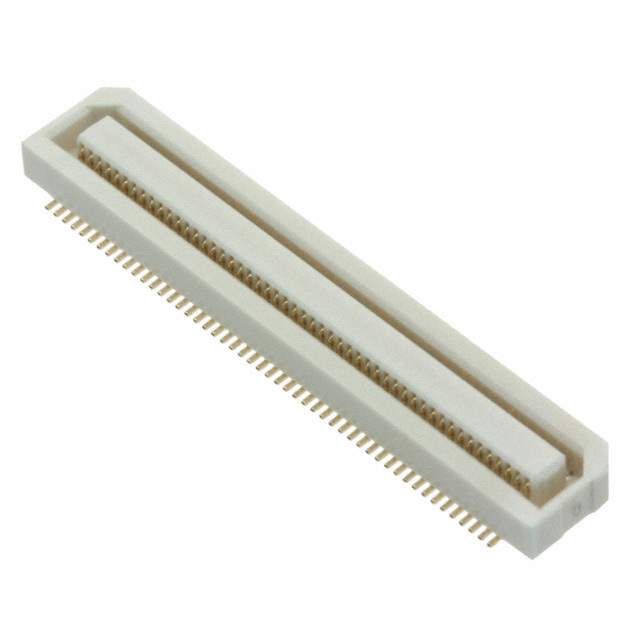

The AXK500147BN1 is a board-to-board connector manufactured by Panasonic. This connector is designed for high-density, high-speed signal transmission in a variety of electronic devices. It is part of Panasonic's range of interconnect solutions, offering reliable performance and compact design.

Applications

• Smartphones and mobile devices
• Tablet computers
• Digital cameras
• Laptop and desktop computers
• Networking equipment

Features

• Fine pitch design for high-density mounting
• High-speed data transmission capabilities
• Surface mount technology (SMT) compatible
• Robust construction for mechanical stability
• Low profile design for space-constrained applications

Benefits

• Enables compact and lightweight designs
• Supports high-speed data transfer rates
• Facilitates automated assembly processes
• Ensures reliable electrical connections
• Enhances the performance and reliability of electronic devices

Additional Details

The AXK500147BN1 connector features a fine pitch, allowing for a high number of contacts in a small area. This makes it suitable for applications where board space is limited. The connector is designed for surface mount soldering, which allows for automated assembly and reduces manufacturing costs. For detailed specifications such as the number of contacts, voltage rating, current rating, and operating temperature range, refer to the official Panasonic datasheet. It is crucial to consult the datasheet to ensure compatibility with the specific application requirements.
