Same model may have multiple batches, images only for reference.

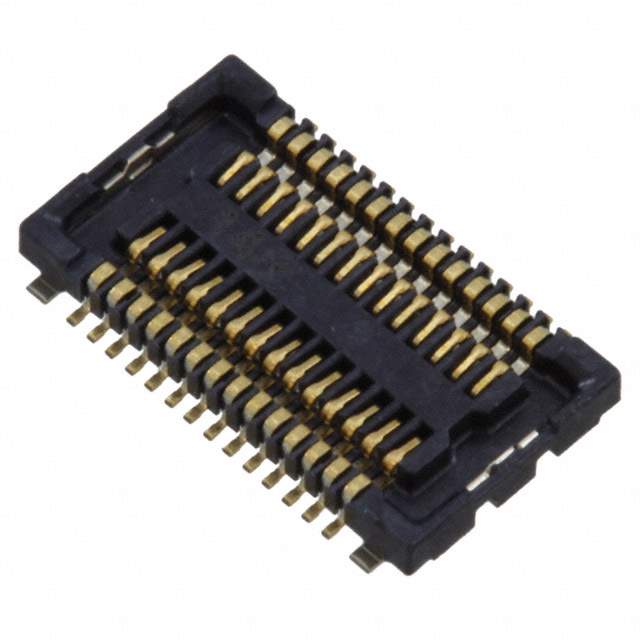

AXK7L28227G Real Image
Same model may have multiple batches, images only for reference.

AXK7L28227G

Part No AXK7L28227G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET FPC .4MM 28POS SMD
Datasheet
AXK7L28227G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 28
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 1021032-AXK7L28227G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AXK7L28227G CAD Model

Description

The Panasonic Electric Works AXK7L28227G is a socket connector with 28 positions and a pitch of 0.016" (0.40mm).

  • Solder Retention: Features
  • Connector Type: Center strip contacts
  • Manufacturer: Panasonic Electric Works
  • Win Source Part Number: 1021032
  • Height above board: 0.034" (0.86mm)
  • Mounting Type: SMD (SMT)
  • Status: Obsolete (EOL)
