Same model may have multiple batches, images only for reference.

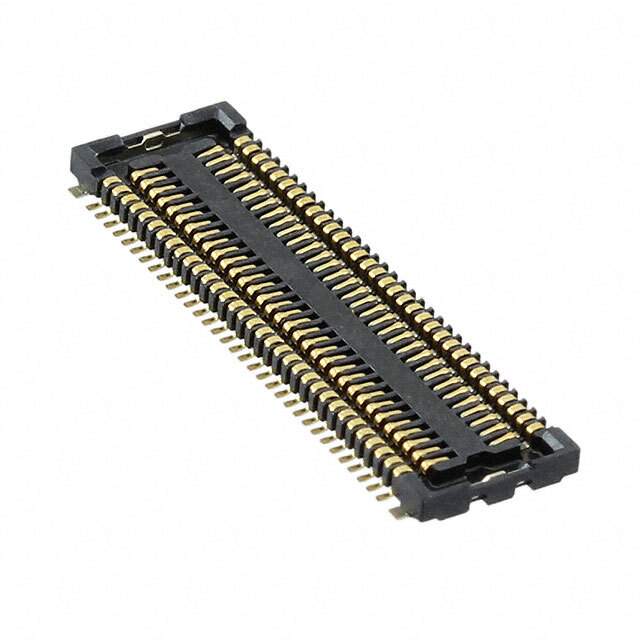

AXK7L66223G Real Image
Same model may have multiple batches, images only for reference.

AXK7L66223G

Part No AXK7L66223G
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET FPC .4MM 66POS SMD
Datasheet
AXK7L66223G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Obsolete(EOL)
Connector Type Socket, Center Strip Contacts
Number of Positions 66
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.9mm
Height Above Board 0.034" (0.86mm)
Win Source Part Number 1021041-AXK7L66223G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AXK7L66223G CAD Model

Description

The Panasonic Electric Works 1021041-AXK7L66223G is a socket connector with center strip contacts.

  • Pitch: 0.016" (0.40mm)
  • Positions: 66
  • Design: solder retention
  • Height above board: 0.034" (0.86mm)
  • Mated stacking heights: 0.9mm
  • Mounting: SMD (SMT)
  • Contact Finish: gold
  • Status: obsolete (EOL)
  • Popularity: medium
