Part No AXN300130S
Manufacturer Panasonic
Catalog Rectangular Connectors

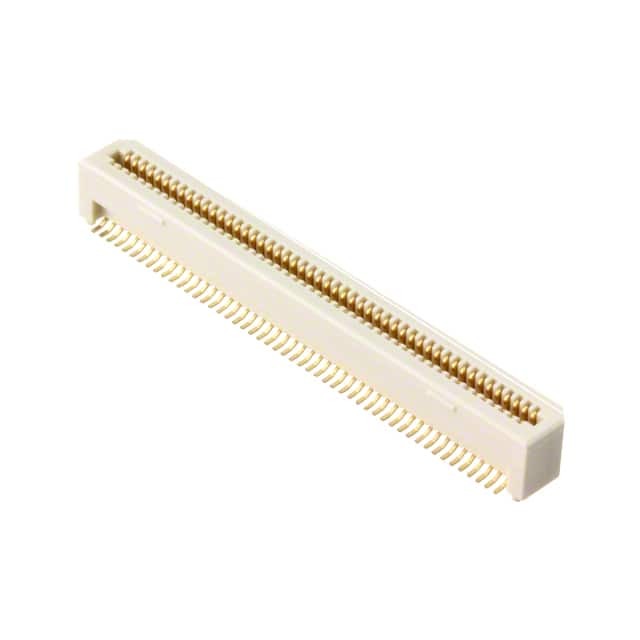

Description CONN SOCKET 100POS SMD GOLD / 100 Position Connector Socket, Center Strip Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P8
Package Tube
Product Status Obsolete
Connector Type Socket, Center Strip Contacts
Number of Positions 100
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 6mm, 7mm, 8mm, 13mm, 14mm
Height Above Board 0.106" (2.70mm)
Base Product Number AXN300
Standard Package 12 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862793-AXN300130S
Ultra Librarian 3D Model Ultra Librarian AXN300130S CAD Model

Description

The 862793-AXN300130S is a rectangular connector array with edge type and mezzanine (board to board) configuration from Panasonic.

  • Category: Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Positions: 100
  • Pitch: 0.031" (0.80mm)
  • Features: Board guides
  • Connector Type: Socket connector with center strip contacts
  • Rows: Two
  • Contact Finish: Gold
  • Package: Tube
  • Mated Stacking Heights: 6mm, 7mm, 8mm, 13mm, and 14mm
  • Height Above Board: 0.106" (2.70mm)
  • Standard Package: 12 pieces
  • Mounting: Surface mountable
  • ECCN: EAR99
