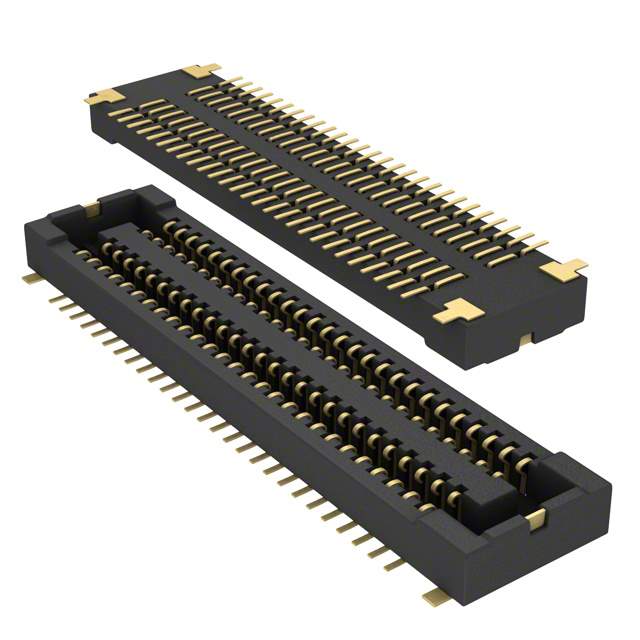

AXT554124 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series F4S
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Outer Shroud Contacts
Number of Positions 54
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness -
Mated Stacking Heights 1mm
Height Above Board 0.038" (0.97mm)
Base Product Number AXT554
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 3,000 pcs
Win Source Part Number 1381507-AXT554124
Ultra Librarian 3D Model Ultra Librarian AXT554124 CAD Model

Description

The 1381507-AXT554124 is an obsolete rectangular connector array designed for board-to-board connections. Manufactured by Panasonic, a trusted name in the industry, this connector array delivers excellent quality and performance for your electronic designs.

  • Positions: 54
  • Pitch: 0.016" (0.40mm)
  • Connection Type: Board-to-Board
  • Features: Solder Retention
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Status: Obsolete
