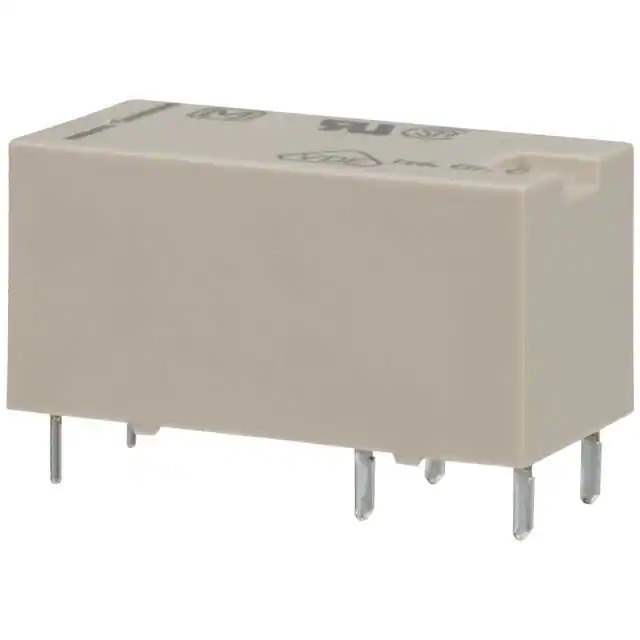

DE1A-24V Real Image
Same model may have multiple batches, images only for reference.

DE1A-24V

Part No DE1A-24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DE
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number DE1A
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 868312-DE1A-24V
Ultra Librarian 3D Model Ultra Librarian DE1A-24V CAD Model

Description

The Panasonic DE1A-24V is a power relay that falls under the category of relays with a current rating of over 2 Amps.

  • Series: DE
  • Termination Style: PC pin
  • Type: Non-Latching
  • Applications: General Purpose
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Coil Voltage: 24VDC
  • Switching Voltage: 250VAC and 30VDC maximum
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 70°C
