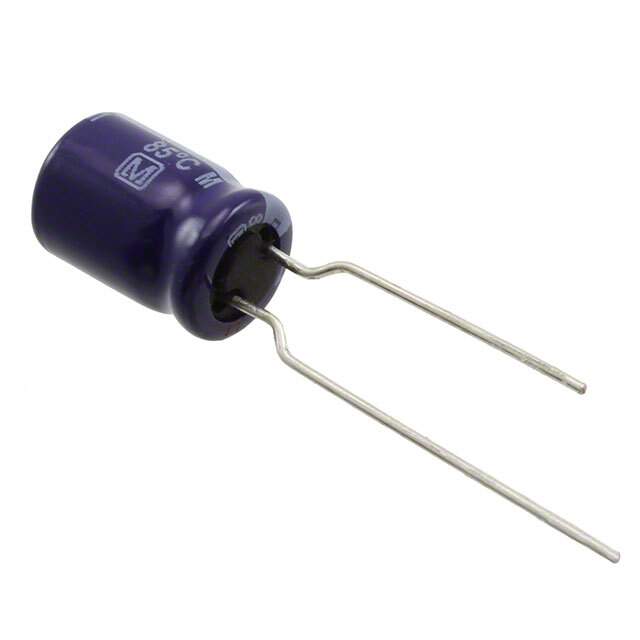

ECA-1CM471 Real Image
Same model may have multiple batches, images only for reference.

ECA-1CM471

Part No ECA-1CM471
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series M-A
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 440 mA @ 120 Hz
Ripple Current @ High Frequency 748 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-1CM
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351454-ECA-1CM471
Ultra Librarian 3D Model Ultra Librarian ECA-1CM471 CAD Model

Description

The Panasonic Electronic Components ECA-1CM471 is a 470 µF, 16 V, polarized aluminum electrolytic capacitor.

  • Capacitance: 470 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Standard Package: 200
  • Height: 0.492" (12.50mm)
  • Diameter: 0.315" (8.00mm)
  • Application: General Purpose
  • Lifetime @ Temp.: 2000 Hours @ 85°C
  • Package / Case: Radial, Can
  • Mounting Type: Through Hole
  • ESR (Equivalent Series Resistance): -
  • Ripple Current @ Low Frequency: 440 mA @ 120 Hz
  • Ripple Current @ High Frequency: 748 mA @ 10 kHz
