Same model may have multiple batches, images only for reference.

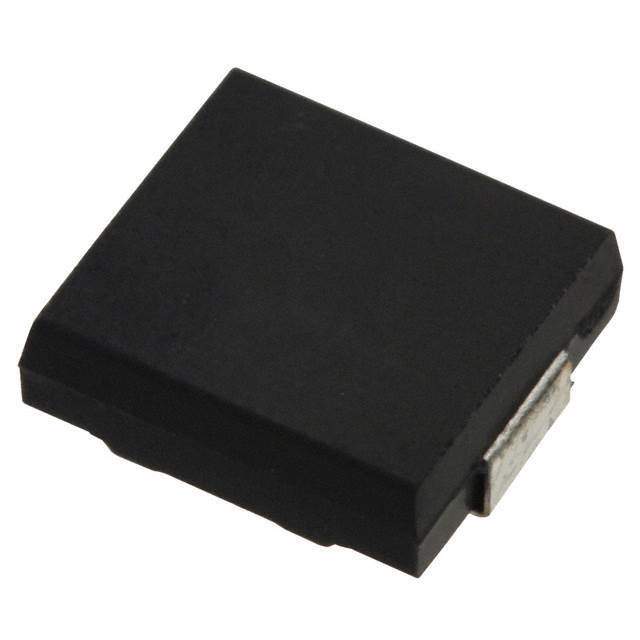

ECC-T3G100JG Real Image
Same model may have multiple batches, images only for reference.

ECC-T3G100JG

Part No ECC-T3G100JG
Manufacturer Panasonic
Catalog Ceramic Capacitors
Description CAP CER 10PF 4KV SL/GP SMD
Datasheet
ECC-T3G100JG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Part Status Obsolete(EOL)
Capacitance 10pF
Tolerance ±5%
Voltage Rating DC 4000V (4kV)
Temperature Coefficient SL/GP
Operating Temperature Range -25°C ~ 105°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package Nonstandard SMD
Dimension 0.280" L x 0.248" W (7.10mm x 6.30mm)
Thickness (Maximum) 0.110" (2.80mm)
Win Source Part Number 761731-ECC-T3G100JG
Popularity Medium
Supply and Demand Status Limited
Family Name ECC
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ECC-T3G100JG CAD Model

Description

The Panasonic Electronic Components ECC-T3G100JG is a high-voltage ceramic capacitor.

  • Capacitance: 10pF
  • Voltage: 4000V (4kV)
  • Tolerance: ±5%
  • Temperature Coefficient: SL/GP
  • Supply and Demand Status: Limited
  • Package: Nonstandard SMD
  • Mounting: Surface mount, MLCC
  • Operating Temperature: -25°C to 105°C
