Same model may have multiple batches, images only for reference.

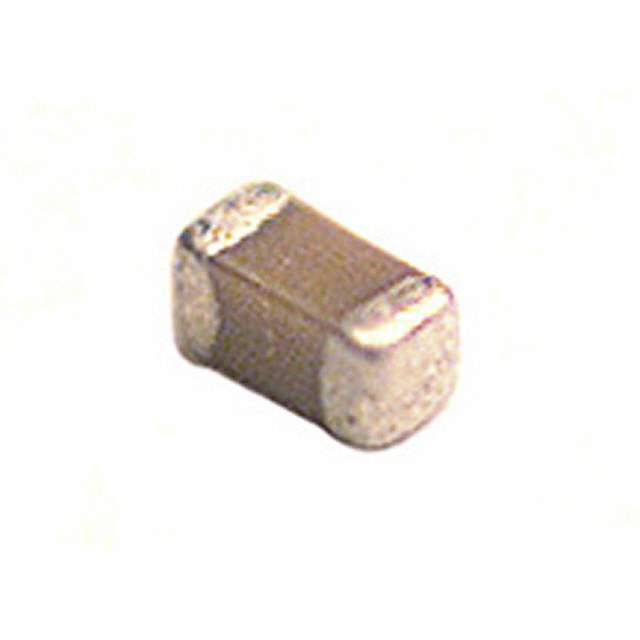

ECD-G0E1R1B Real Image
Same model may have multiple batches, images only for reference.

ECD-G0E1R1B

Part No ECD-G0E1R1B
Manufacturer Panasonic
Catalog Ceramic Capacitors
Description CAP CER 1.1PF 25V C0G/NP0 0402  /  1.1 pF ±0.1pF 25V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
Datasheet
ECD-G0E1R1B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Panasonic Electronic Components
Series ECD
Package Tape & Reel
Product Status Obsolete
Capacitance 1.1 pF
Tolerance ±0.1pF
Voltage - Rated 25V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 0402 (1005 Metric)
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
Base Product Number ECD-G0
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names ECDG0E1R1B,PCC2209CT,PCC2209DKR,PCC2209TR,PCC2209DKR-NDR
Standard Package 10,000
Win Source Part Number 1110250-ECD-G0E1R1B
Ultra Librarian 3D Model Ultra Librarian ECD-G0E1R1B CAD Model

Description

The ECD series capacitor from Panasonic Electronic Components is a ceramic capacitor with a capacitance of 1.1 pF and a voltage rating of 25V.

  • Capacitance: 1.1 pF
  • Voltage Rating: 25V
  • Features: High Q and Low Loss
  • Temperature Coefficient: C0G, NP0
  • Thickness: 0.022" (0.55mm)
  • Mounting: Surface Mountable
  • Package/Case Size: 0402 (1005 Metric)
  • Operating Temperature Range: -55°C ~ 125°C
  • Status: Obsolete
