Same model may have multiple batches, images only for reference.

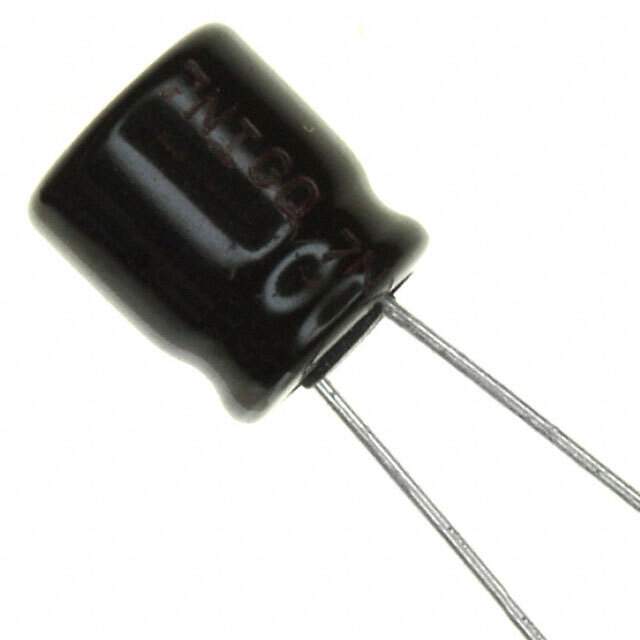

ECE-A1EKA470B Real Image
Same model may have multiple batches, images only for reference.

ECE-A1EKA470B

Part No ECE-A1EKA470B
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V RADIAL / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series KA
Package Cut Tape (CT) Tape & Box (TB)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 70 mA @ 120 Hz
Ripple Current @ High Frequency 119 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECE-A1
Standard Package 2,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1350235-ECE-A1EKA470B
Ultra Librarian 3D Model Ultra Librarian ECE-A1EKA470B CAD Model

Description

The ECE-A1EKA470B is a KA series aluminum electrolytic capacitor with a package type of cut tape (CT) tape and box (TB).

  • Capacitance: 47 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Height Seated (Max): 0.315" (8.00mm)
  • Standard Package: 2,000
  • Polar: Yes
  • Mounting Type: Through Hole
  • Package/Case: Radial, Can
  • Operating Temperature Range: -40°C to 85°C
  • MSL Level: Not Applicable
  • REACH: Unaffected
  • HTSUS: 8532.22.0020
  • Manufacturer: Panasonic Electronic Components
  • Base Product Number: ECE-A1
  • Ripple Current @ Low Frequency: 70 mA @ 120 Hz
  • Ripple Current @ High Frequency: 119 mA @ 10 kHz
