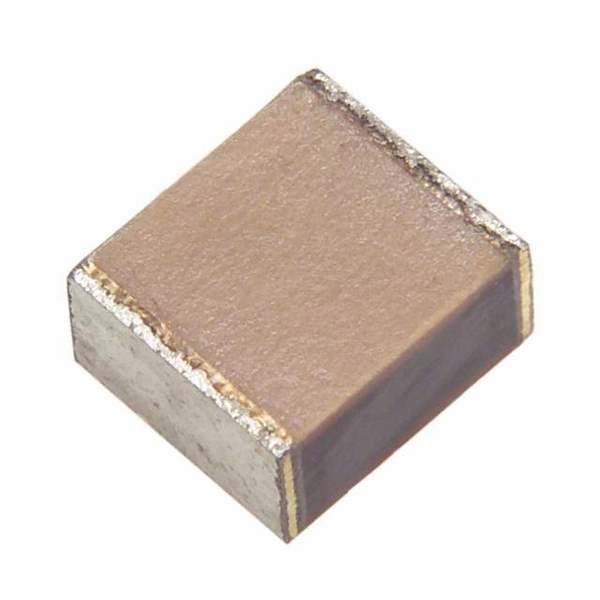

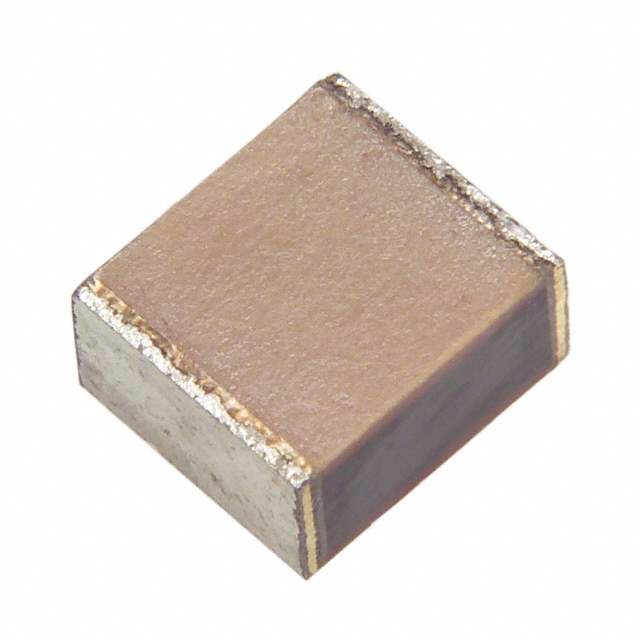

ECH-U1224JCV Real Image
Same model may have multiple batches, images only for reference.

ECH-U1224JCV

Part No ECH-U1224JCV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.22UF 5% 100VDC 2825
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.22μF
Tolerance ±5%
Voltage Rating - DC 100V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.280" L x 0.248" W (7.10mm x 6.30mm)
Height - Seated (Max) 0.201" (5.10mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 102885-ECH-U1224JCV
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ECH-U1224JCV CAD Model

Description

Product Overview

The ECH-U1224JCV capacitor combines durability with top-tier performance to suit advanced electronic applications. Its high precision makes it a vital component in sophisticated circuits.

Features and Benefits

  • Superior voltage rating for enhanced reliability
  • Low-profile design for minimal space usage
  • Exceptional endurance for long-term applications
  • High ripple current handling

Applications

  • Broadcast equipment
  • Mobile communication devices
  • Aerospace technology
  • Smart metering systems

This product is tailored to meet the needs of high-demand applications requiring robust performance.
