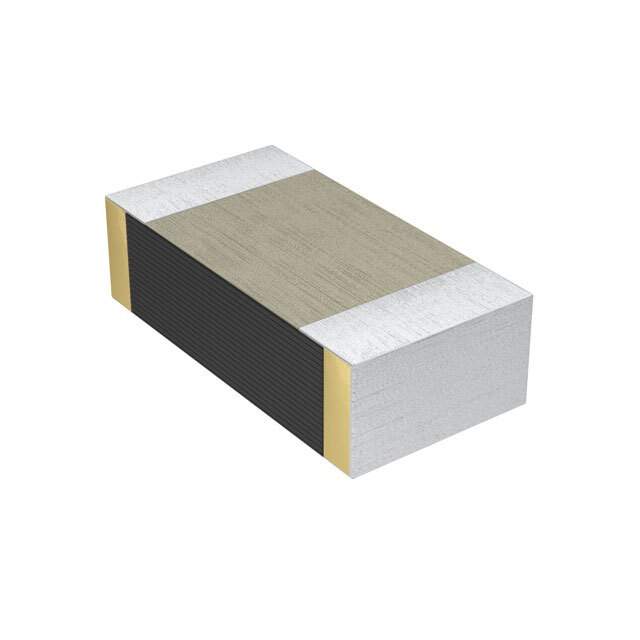

The ECH-U1C183GX5 is a 0.018µF (18nF) Film Capacitor from Panasonic's ECH-U series. This series is known for its compact size, high reliability, and excellent electrical characteristics. These capacitors are ideal for a variety of applications requiring stable performance and long life.

Applications

• Consumer Electronics: Used in devices such as televisions, audio equipment, and home appliances for filtering and decoupling.
• Industrial Equipment: Employed in industrial control systems, power supplies, and motor drives for stable operation.
• Lighting: Suitable for use in LED lighting systems for power factor correction and filtering.
• Automotive Electronics: Found in automotive control units and power systems for reliable performance in harsh conditions.
• Telecommunications: Utilized in communication devices for signal filtering and noise reduction.

Features

• Small Size: Compact design allows for high-density mounting on circuit boards.
• High Reliability: Offers stable performance and long life under various operating conditions.
• Excellent Electrical Characteristics: Provides low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) for efficient operation.
• Flame Retardant Plastic Case: Enhances safety and protects the capacitor from environmental factors.
• RoHS Compliant: Meets environmental regulations regarding hazardous substances.

Benefits

• Stable Performance: Ensures consistent and reliable operation in diverse applications.
• Space Saving: Compact size allows for efficient use of board space.
• Improved Circuit Efficiency: Low ESR and ESL contribute to efficient energy transfer and reduced heat generation.
• Enhanced Safety: Flame retardant case provides added protection against fire hazards.
• Environmentally Friendly: RoHS compliance ensures minimal environmental impact.

Additional Details

The ECH-U1C183GX5 features a 16V rated voltage and a tolerance of ±2%. It is designed for surface mount technology (SMT) assembly, which allows for automated and efficient manufacturing processes. The capacitor uses a metallized plastic film dielectric, providing good stability over temperature and frequency. It can operate within a wide temperature range, typically from -40°C to +85°C. It's suitable for decoupling, filtering, and timing circuits where high reliability and stability are critical. The compact size and excellent electrical properties make it a versatile choice for various electronic applications.
