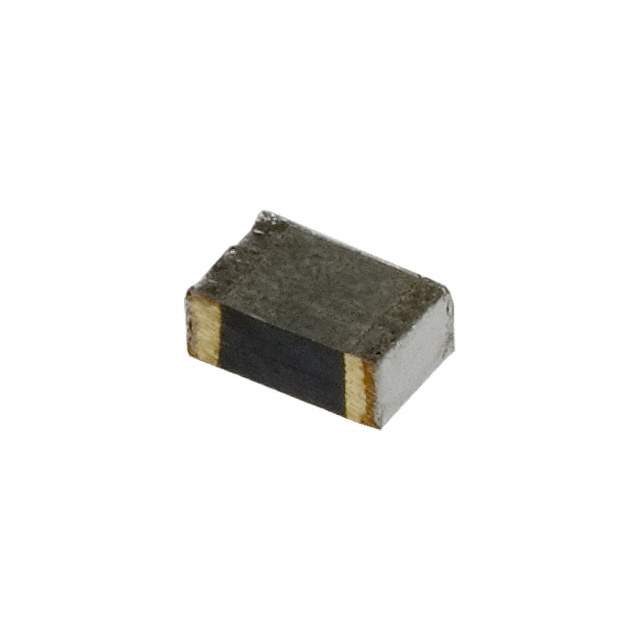

The ECHU1H471GX5 is a 470pF Film Capacitor from Panasonic's ECH-U series. This series offers compact size and high reliability. These capacitors are well-suited for a variety of applications requiring stable performance and extended operational life.

Applications

• Consumer Electronics: Filtering and decoupling in audio amplifiers, televisions, and set-top boxes.
• Industrial Control Systems: Ensuring stable operation in motor drives, power supplies, and control circuits.
• LED Lighting: Power factor correction and filtering in LED drivers.
• Automotive Electronics: Reliable performance in automotive control units and power systems.
• Telecommunications Equipment: Signal filtering and noise reduction in communication devices.

Features

• Compact Size: Allows for high-density mounting in space-constrained applications.
• High Reliability: Stable performance and long life under various operating conditions.
• Excellent Electrical Characteristics: Low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) for efficient operation.
• Flame Retardant Plastic Case: Enhances safety and provides protection against environmental factors.
• RoHS Compliant: Meets environmental regulations regarding hazardous substances.

Benefits

• Stable Performance: Reliable operation in diverse applications.
• Space Saving: Allows for efficient use of board space.
• Improved Circuit Efficiency: Low ESR and ESL contribute to efficient energy transfer.
• Enhanced Safety: Flame retardant case provides added protection.
• Environmentally Friendly: RoHS compliance ensures minimal environmental impact.

Additional Details

The ECHU1H471GX5 has a rated voltage of 50V and a tolerance of ±2%. It is designed for surface mount technology (SMT) assembly, allowing for efficient manufacturing processes. The capacitor uses a metallized plastic film dielectric, providing good stability over temperature and frequency. It operates within a wide temperature range, typically from -40°C to +85°C. It is suitable for decoupling, filtering, and timing circuits where high reliability is crucial. The compact size and excellent electrical properties make it a versatile component in many electronic systems. Its low profile allows for dense placement on circuit boards.
