Same model may have multiple batches, images only for reference.

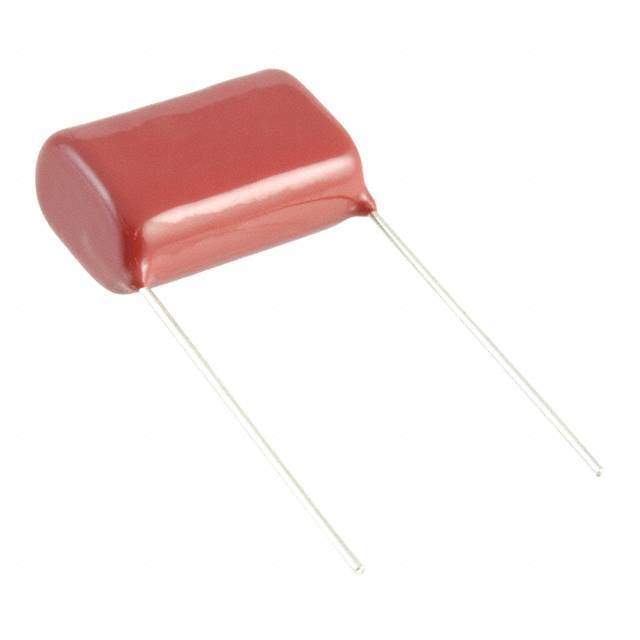

ECW-FD2W475K Real Image
Same model may have multiple batches, images only for reference.

ECW-FD2W475K

Part No ECW-FD2W475K
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 4.7UF 10% 450VDC RADIAL / 4.7 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-F(D)
Package Bulk
Capacitance 4.7 µF
Tolerance ±10%
Voltage Rating - DC 450V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.996" L x 0.421" W (25.30mm x 10.70mm)
Height - Seated (Max) 0.646" (16.40mm)
Termination PC Pins
Lead Spacing 0.886" (22.50mm)
Applications EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT
Base Product Number ECW-FD
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1340337-ECW-FD2W475K
Ultra Librarian 3D Model Ultra Librarian ECW-FD2W475K CAD Model

Description

The Panasonic Electronic Components ECW-FD2W475K is a film capacitor with a capacitance of 4.7μF and a voltage rating of 450V.

  • Capacitance: 4.7μF
  • Voltage Rating: 450V
  • Applications: EMI and RFI suppression, high frequency and switching applications, and high pulse and DV/DT applications
  • Tolerance: ±10%
  • Package: Radial
  • Dielectric Material: Polypropylene (PP) and Metallized
  • Height: 16.40mm
  • Lead Spacing: 22.50mm
