Same model may have multiple batches, images only for reference.

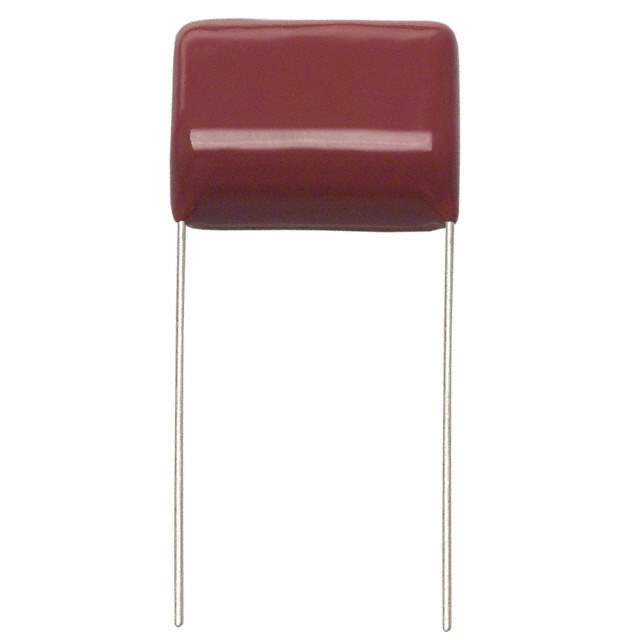

ECW-H12393JV Real Image
Same model may have multiple batches, images only for reference.

ECW-H12393JV

Part No ECW-H12393JV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.039UF 5% 1.25KVDC RAD  /  0.039 µF Film Capacitor 354V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-H(V)
Package Bulk
Capacitance 0.039 µF
Tolerance ±5%
Voltage Rating - AC 354V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.906" L x 0.413" W (23.00mm x 10.50mm)
Height - Seated (Max) 0.827" (21.00mm)
Termination PC Pins
Lead Spacing 0.787" (20.00mm)
Applications High Frequency, Switching
Base Product Number ECW-H
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Other Names P10489-NDR,ECWH12393JV,P10489
Standard Package 100
Win Source Part Number 1168309-ECW-H12393JV
Ultra Librarian 3D Model Ultra Librarian ECW-H12393JV CAD Model

Description

The ECW-H(V) series capacitor from Panasonic Electronic Components is a radial through-hole component designed for high frequency and switching applications.

  • Capacitance: 0.039 µF
  • Tolerance: ±5%
  • Voltage Rating: 354V AC and 1250V DC
  • Dielectric Material: Polypropylene (PP) and metallized
  • Lead Spacing: 0.787" (20.00mm)
  • Package: Bulk
  • Standard Package: 100
  • Maximum Seated Height: 0.827" (21.00mm)
  • Operating Temperature: -40°C to 105°C
  • Alternative Part: ECW-H12393JV, ECWH12393JV, and ECWH12393JV
  • REACH: Not Affected
  • ECCN: EAR99
