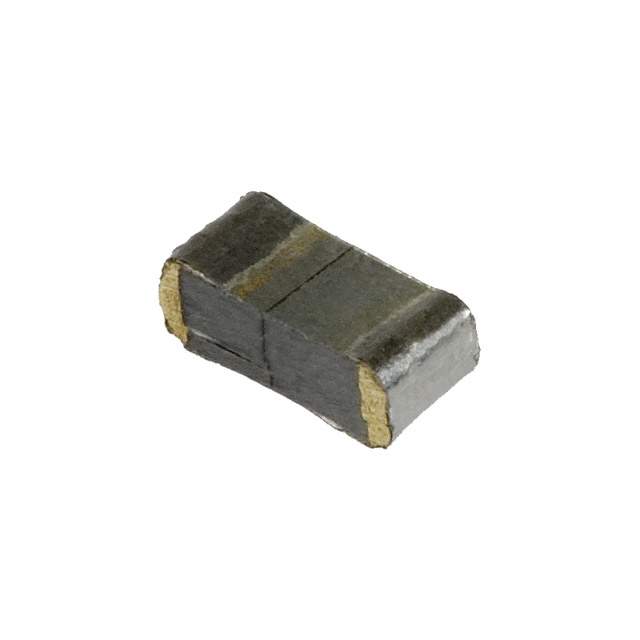

The ECWU1H562JB5 is a metallized polypropylene film capacitor manufactured by Panasonic. This capacitor is designed for high-frequency, high-voltage applications where stability and low loss are critical. Its excellent electrical characteristics make it suitable for demanding circuits.

Applications

• Snubber circuits in power supplies
• High-frequency filtering
• Resonant circuits
• DC link circuits
• Lighting ballasts

Features

• Capacitance: 5600pF (5.6nF)
• Voltage Rating: High Voltage (Specific voltage rating varies based on version – Refer to datasheet)
• Tolerance: Typically ±5%
• Operating Temperature Range: -40°C to +105°C (Consult the datasheet for the specific temperature range).
• Construction: Metallized polypropylene film
• Lead Spacing: (Refer to datasheet for specific lead spacing)
• Self-Healing Properties: The metallized film allows for self-healing in case of voltage breakdown, enhancing reliability.
• Low Dissipation Factor (Tan δ): Minimizes energy loss, resulting in higher efficiency.
• Excellent Frequency Characteristics: Maintains stable performance over a wide frequency range.

Benefits

• High Reliability: Metallized polypropylene film provides excellent long-term stability.
• Low Losses: Minimizes energy dissipation, improving efficiency.
• Stable Performance: Offers consistent performance over a wide range of operating conditions.
• Self-Healing: Enhances reliability and prevents catastrophic failures.
• High Voltage Capability: Suitable for demanding high-voltage applications.

Additional Details

The ECWU1H562JB5 capacitor utilizes a metallized polypropylene film dielectric, providing excellent electrical characteristics, including low dissipation factor and high insulation resistance. The self-healing property is a significant advantage in high-voltage applications, as it allows the capacitor to recover from transient voltage spikes. When using this capacitor, it is crucial to consider the voltage and current requirements of the circuit and to ensure that the capacitor's ratings are not exceeded. Consult the Panasonic datasheet for detailed specifications, including voltage rating, dissipation factor, insulation resistance, and temperature derating curves. Proper mounting and soldering techniques should be employed to ensure a reliable electrical connection and to avoid damaging the capacitor. Always consider appropriate safety margins when designing circuits with high-voltage components.
