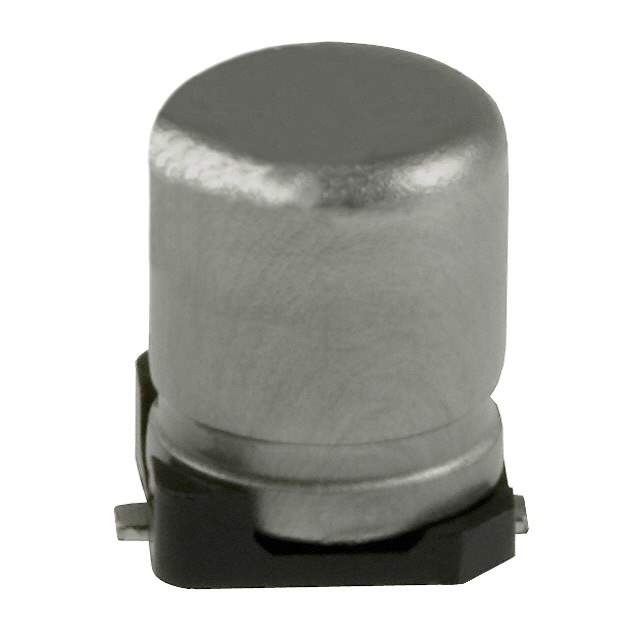

EEE-1EA3R3NR Real Image
Same model may have multiple batches, images only for reference.

EEE-1EA3R3NR

Part No EEE-1EA3R3NR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 3.3UF 20% 25V SMD  /  3.3 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Capacitance 3.3 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Bi-Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 12 mA @ 120 Hz
Ripple Current @ High Frequency 20.4 mA @ 10 kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-1EA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names PCE4292TR,EEE1EA3R3NR,PCE4292CT,PCE4292DKR
Standard Package 2,000
Win Source Part Number 1057262-EEE-1EA3R3NR
Ultra Librarian 3D Model Ultra Librarian EEE-1EA3R3NR CAD Model

Description

The Panasonic Electronic Components EEE-1EA3R3NR is an aluminum electrolytic capacitor that has a capacitance of 3.3 µF and a rated voltage of 25V.

  • Manufacturer: Panasonic Electronic Components
  • Capacitance: 3.3 µF
  • Rated Voltage: 25V
  • Tolerance: ±20%
  • Application: Automotive
  • Ripple Current: 12 mA @ 120 Hz and 20.4 mA @ 10 kHz
  • Package: Radial, can-SMD
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Operating Temperature Range: -40°C to 85°C
  • Lifetime: 2000 Hrs @ 85°C
  • Suitable for: Circuit protection applications
