Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 22μF
Tolerance ±20%
Voltage Rating 8V
ESR 28 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 2A @ 100kHz
Height - Seated (Max) 0.075" (1.90mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 040136-EEFCD0K220ER
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEFCD0K220ER CAD Model

Description

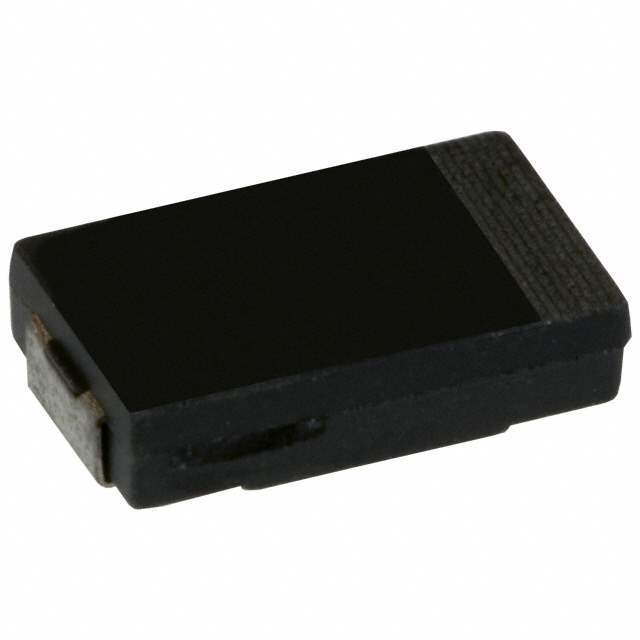

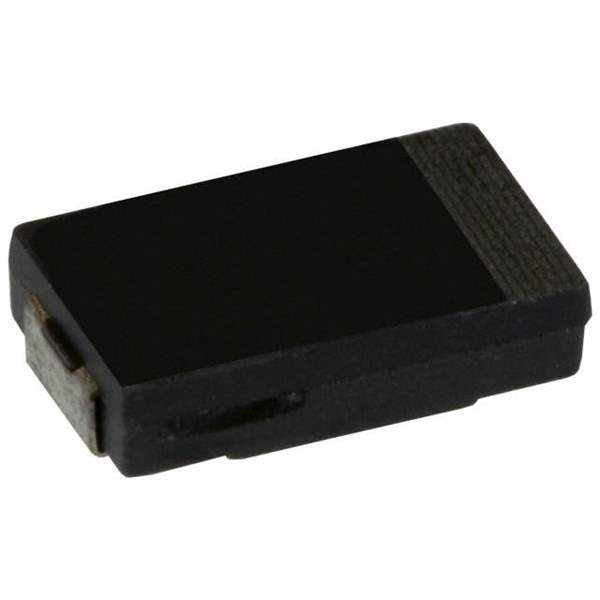

EEFCD0K220ER Overview

The EEFCD0K220ER is an exceptional choice for applications demanding high energy efficiency and compact size. With its low ESR and high reliability, this component ensures optimal performance in demanding environments.

  • Applications: Consumer electronics, telecommunications, LED lighting, automotive electronics.
  • Features & Benefits:
    • High capacitance of 220uF, ideal for energy storage solutions.
    • Lower ESR improves power efficiency and reduces heat generation.
    • Small footprint suitable for high-density circuit boards.
    • Ensures stable operation over a wide temperature range.
  • Additional Details:
    • Capacitance Value: 220uF
    • Capacitance Tolerance: ±20%
    • Operating Temperature Range: -40°C to +85°C
    • Voltage Rating: 80V
