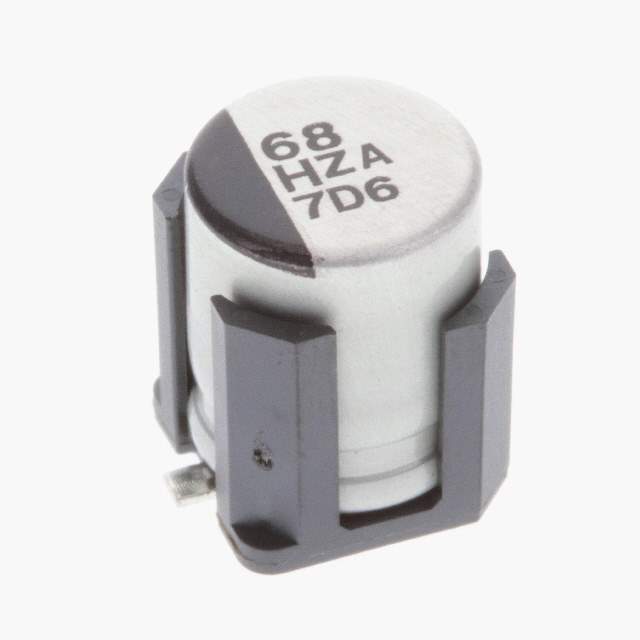

Same model may have multiple batches, images only for reference.

EEH-ZA1V151V

Name: EEH-ZA1V151V
Brand: Panasonic
SKU: 1337179
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEH-ZA1V151V
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 150UF 20% 35V SMD / 150 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	ZA, Anti-Vibration
Package	Tape & Reel
Type	Hybrid
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	27mOhm
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	345 mA @ 100 Hz
Ripple Current @ High Frequency	2.3 A @ 100 kHz
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEH-ZA
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1337179-EEH-ZA1V151V
Ultra Librarian 3D Model	Ultra Librarian EEH-ZA1V151V CAD Model

Description

The EEH-ZA1V151V is a hybrid aluminum polymer capacitor designed for automotive applications, manufactured by Panasonic Electronic Components.

Capacitance: 150µF
Voltage Rating: 35V
Tolerance: ±20%
ESR: 27mOhm
Ripple Current: 345mA @ 100Hz and 2.3A @ 100kHz
Lifetime: 10,000 hours @ 105°C
Packaging: Tape and Reel
Size/Dimension: 0.315" Dia (8.00mm)
Operating Temperature: -55°C to 105°C
