Same model may have multiple batches, images only for reference.

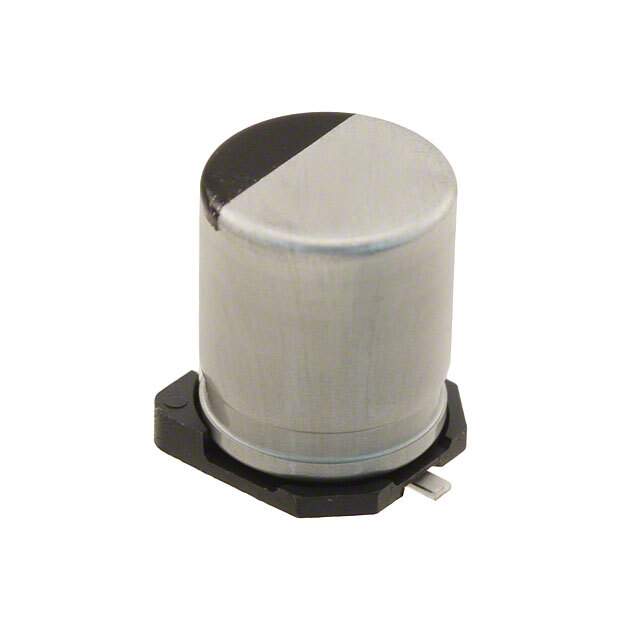

EEH-ZC1K220P Real Image
Same model may have multiple batches, images only for reference.

EEH-ZC1K220P

Part No EEH-ZC1K220P
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 22UF 80V SMD / 22 µF 80 V Aluminum - Polymer Capacitors Radial, Can - SMD 45mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 45mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 105 mA @ 100 Hz
Ripple Current @ High Frequency 1.05 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 2266-EEH-ZC1K220PTR,P19318TR,P19318CT,P19318DKR,EEHZC1K220P
Standard Package 500
Win Source Part Number 1330873-EEH-ZC1K220P
Ultra Librarian 3D Model Ultra Librarian EEH-ZC1K220P CAD Model

Description

The EEH-ZC1K220P from Panasonic Electronic Components is an aluminum-polymer capacitor that can be used in automotive applications.

  • Capacitance: 22 µF
  • Voltage Rating: 80 V
  • Tolerance: ±20%
  • ESR: 45 mOhm
  • Ripple Current (Low Frequency): 105 mA @ 100 Hz
  • Ripple Current (High Frequency): 1.05 A @ 100 kHz
  • Case: Radial, can - SMD
  • Package: 500
