Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TS-ED
Package Bulk
Product Status Obsolete
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) 402mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.85 A @ 120 Hz
Ripple Current @ High Frequency 2.64 A @ 100 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Base Product Number EET-ED
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1337809-EET-ED2W331EA
Ultra Librarian 3D Model Ultra Librarian EET-ED2W331EA CAD Model

Description

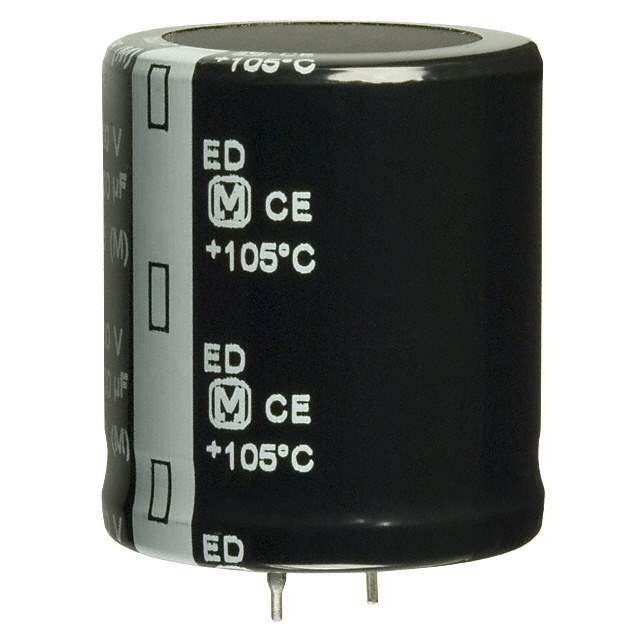

This Panasonic Electronic Components TS-ED series aluminum electrolytic capacitor is a bulk package component with a 330 μF capacitance and a voltage rating of 450 V.

  • Series: TS-ED
  • Package: Bulk
  • Capacitance: 330 μF
  • Voltage Rating: 450 V
  • Package / Case: Radial, Can
  • Mounting Type: Snap-In
  • ESR (Equivalent Series Resistance): 402 mOhm @ 120Hz
  • Lifetime @ Temp.: 3000 hours @ 105°C
  • Diameter: 1.378 inches
  • Height - Seated (Max): 1.575 inches
