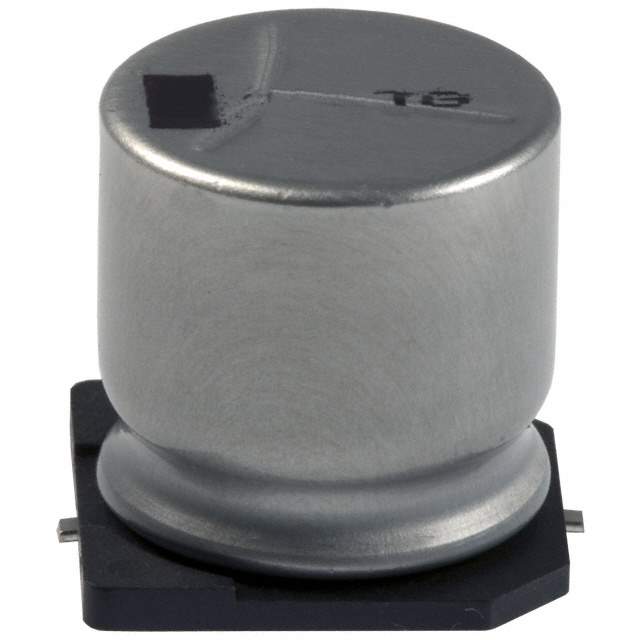

The EEVTG1H471M is an aluminum electrolytic capacitor from Panasonic's TG series. These capacitors are designed for use in general-purpose applications requiring reliability and moderate performance characteristics. The TG series offers a balance between size, cost, and lifespan, making it a suitable choice for various electronic applications.

Applications

• General purpose power supplies
• Audio equipment
• Consumer electronics
• Industrial control systems
• Filtering circuits
• Bypass circuits
• Coupling circuits

Features

• General Purpose Design: Suitable for various electronic circuits.
• Moderate Ripple Current: Handles moderate ripple currents effectively.
• Wide Operating Temperature Range: Operates reliably within a specified temperature range.
• Long Life: Offers a decent lifespan under typical operating conditions.
• RoHS Compliant: Complies with environmental regulations for hazardous substances.

Benefits

• Versatile Usage: Can be utilized in a wide array of applications.
• Reliable Operation: Ensures stable performance in general purpose circuits.
• Cost-Effective: Provides a good balance of performance and cost.

Technical Specifications

The EEVTG1H471M has a capacitance of 470μF and a voltage rating of 50VDC. It is designed to operate within a temperature range of -40°C to +85°C. Please refer to the official Panasonic TG series datasheet for precise dimensions and detailed electrical specifications, including ESR, impedance, and ripple current ratings.

The EEVTG1H471M is a reliable and versatile choice for general-purpose applications. Its combination of capacitance, voltage rating, and operating temperature makes it suitable for use in a variety of electronic devices where high-end performance isn't strictly required but reliability is essential. The capacitor provides stable operation in common filtering, bypass, and coupling circuits. Engineers looking for a dependable and cost-effective capacitor for general electronic designs will find this component to be a practical choice.
