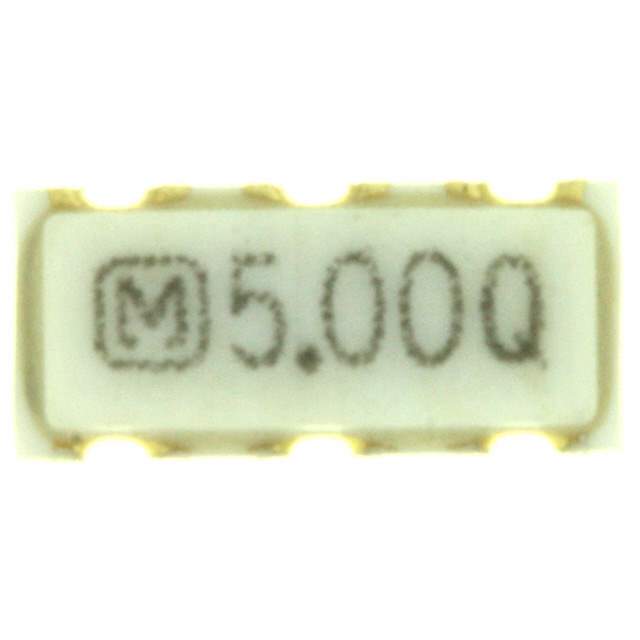

EFO-SS5004E5 Real Image
Same model may have multiple batches, images only for reference.

EFO-SS5004E5

Part No EFO-SS5004E5
Manufacturer Panasonic
Catalog Resonators
Description CERAMIC RES 5.0000MHZ 21PF SMD  /  5 MHz Ceramic Resonator Built in Capacitor 21 pF ±0.2% -20°C ~ 80°C Surface Mount
Datasheet
EFO-SS5004E5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Resonators
Mfr Panasonic Electronic Components
Series EFO-SS
Package Tape & Reel
Product Status Obsolete
Type Ceramic
Frequency 5 MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 21 pF
Temperature Range - Operating -20°C ~ 80°C
Mounting SMD (SMT)
Package / Case 3-SMD, Non-Standard
Dimension 0.177" L x 0.079" W (4.50mm x 2.00mm)
Height 0.047" (1.19mm)
Base Product Number EFO-SS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names PX500SSTR,EFOSS5004E5,PX500SSCT,PX500SSDKR
Standard Package 2,000
Win Source Part Number 1115212-EFO-SS5004E5
Ultra Librarian 3D Model Ultra Librarian EFO-SS5004E5 CAD Model

Description

The Panasonic Electronic Components Resonator with Win Source Part Number 1115212-EFO-SS5004E5 is a ceramic resonator that belongs to the EFO-SS series.

  • Series: EFO-SS
  • Built-in Capacitor: Yes
  • Package: Tape & Reel
  • Capacitance: 21 pF
  • Frequency: 5 MHz
  • Height: 0.047" (1.19mm)
  • Frequency Stability: ±0.2%
  • Frequency Tolerance: ±0.5%
  • Package/Case: 3-SMD, Non-Standard
  • Operating Temperature Range: -20°C ~ 80°C
