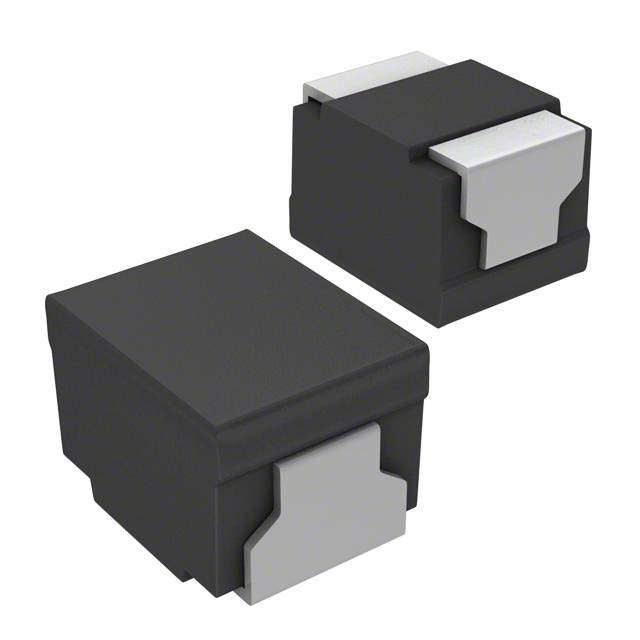

ELJDA560JF

Name: ELJDA560JF
Brand: Panasonic
SKU: 1057080
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELJDA560JF
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	Ind General Purpose Chip Molded Wirewound 56uH 5% 2.52MHz 21Q-Factor Ferrite 100mA 1210 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	1210
Case Code (Imperial)	1210
Case / Package	3225
Core Material	Ferrite
Current	110 mA
Current Rating	100 mA
DC Resistance (DCR)	6.5 Ω
Depth	2.7 mm
Height	2.2 mm
Inductance	56 µH
Inductance Tolerance	5 %
Length	3.2 mm
Max DC Current	100 mA
Maximum Operating Temperature	85 °C
Min Operating Temperature	-20 °C
Mount	Surface Mount
Number of Pins	2
Packaging	Tape & Reel
Q Factor	21
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Self Resonant Frequency	8.5 MHz
Shielding	Unshielded
Termination	SMD/SMT
Test Frequency	2.52 MHz
Tolerance	5 %
Weight	15.989131 mg
Width	2.0066 mm
Win Source Part Number	1057080-ELJDA560JF
Categories	Fixed Inductors
Manufacturer	Panasonic
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian ELJDA560JF CAD Model

Alternative Products

Description

The ELJDA560JF is a fixed inductor manufactured by Panasonic.

Mounting Style: Surface mount device (SMD/SMT)
Inductance: 56 μH
Tolerance: 5%
Q factor: 21
Win Source Part Number: 1057080-ELJDA560JF
