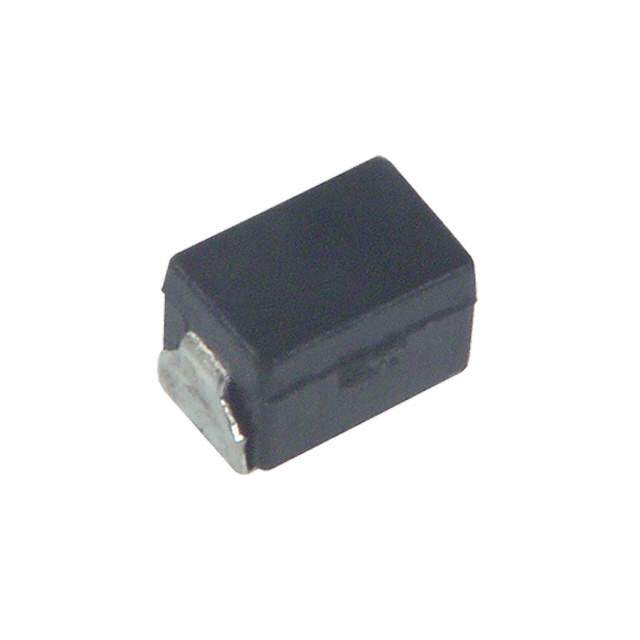

ELJPC220MF3

Name: ELJPC220MF3
Brand: Panasonic
SKU: 1057083
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELJPC220MF3
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	Inductor Power Chip Molded Wirewound 22uH 20% 1MHz Ferrite 275mA 1.22Ohm DCR 1008 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Case / Package	1008
Case Code (Imperial)	1008
Case / Package	2520
Core Material	Ferrite
Current Rating	275 mA
DC Resistance (DCR)	1.22 Ω
Depth	2.2 mm
Height	1.5748 mm
Inductance	22 µH
Inductance Tolerance	20 %
Lead Pitch	1.5 mm
Length	2.4892 mm
Max DC Current	275 mA
Maximum Operating Temperature	85 °C
Min Operating Temperature	-20 °C
Mount	Surface Mount
Number of Pins	2
Packaging	Tape and Reel
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Saturation Current	100 mA
Self Resonant Frequency	21 MHz
Shielding	Unshielded
Test Frequency	1 MHz
Tolerance	20 %
Width	2.0066 mm
Win Source Part Number	1057083-ELJPC220MF3
Categories	Fixed Inductors
Manufacturer	Panasonic
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian ELJPC220MF3 CAD Model

Alternative Products

Description

The Panasonic 1057083-ELJPC220MF3 is a surface mount fixed inductor with an inductance of 22 µH and a current rating of 275 mA.

Inductance: 22 µH
Current Rating: 275 mA
Tolerance: 20%
Test Frequency: 1 MHz
Shielded: Yes
Core Material: Ferrite
Package Size: 1008
Pins: 2
Maximum DC Current: 275 mA
DC Resistance: 1.22 Ω
Height: 1.5748 mm
Width: 2.0066 mm
