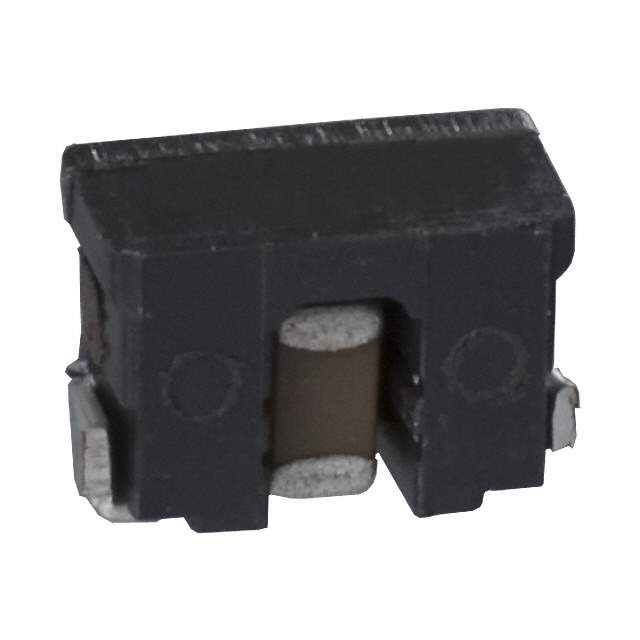

ELK-EA100FA Real Image
Same model may have multiple batches, images only for reference.

ELK-EA100FA

Part No ELK-EA100FA
Manufacturer Panasonic
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 10PF 500MHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 10pF 6 A 1207 (3218 Metric), 3 PC Pad
Manufacturer Panasonic
Series ELKEA
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -20°C ~ 85°C
Mounting Surface Mount
Package 1207 (3218 Metric), 3 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number P13160TR, P13160DKR, P13160CT, ELKEA100FA
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870364-ELK-EA100FA
Ultra Librarian 3D Model Ultra Librarian ELK-EA100FA CAD Model

Description

The ELK-EA100FA is an EMI filter designed for use in LC (T-Type) applications. It has a 3rd order low pass filter and 1 channel with a capacitance of 10pF and a current rating of 6A.

  • Filter Type: 3rd Order Low Pass
  • Channel Count: 1
  • Capacitance: 10pF
  • Current Rating: 6A
  • Mounting: Surface-Mountable
  • Package: 1207 (3218 metric), 3 PC pad
  • Popularity: Medium
  • ECCN: EAR99
  • HTSUS: 8548.90.0100
  • Manufacturer: Panasonic
  • Quantity per Package: 2000
