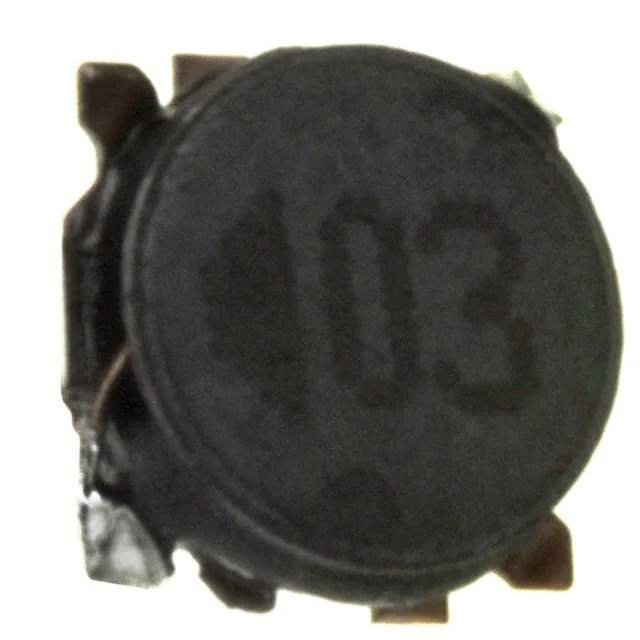

ELL-4GG2R2N Real Image
Same model may have multiple batches, images only for reference.

ELL-4GG2R2N

Part No ELL-4GG2R2N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.4A 88 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic
Series G
Package Tape & Reel
Product Status Obsolete
Type Wirewound
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.7A
Shielding Shielded
DC Resistance (DCR) 88mOhm
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.055" (1.40mm)
Base Product Number ELL-4GG
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 850571-ELL-4GG2R2N
Ultra Librarian 3D Model Ultra Librarian ELL-4GG2R2N CAD Model

Description

The ELL-4GG2R2N is a fixed inductor from Panasonic's G series.

  • Series: G
  • Type: Wirewound
  • Package: Tape and reel
  • Shielded: Yes
  • Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Seated Height: 0.055" (1.40mm)
  • Inductance: 2.2 µH
  • Tolerance: ±30%
