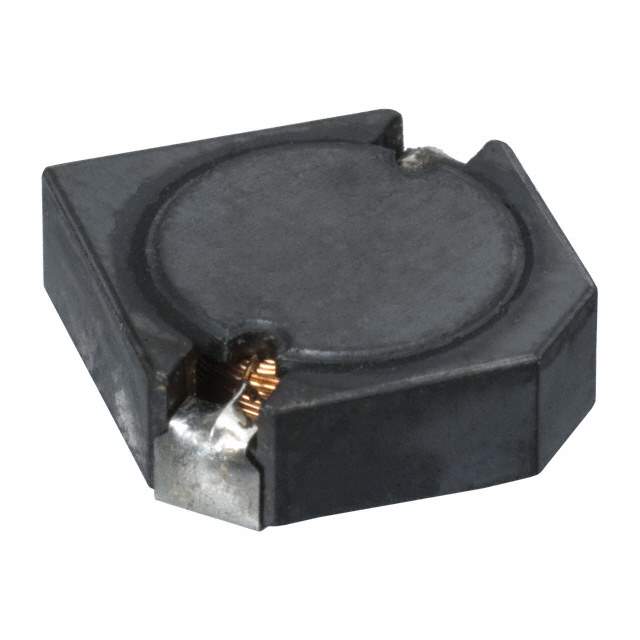

Same model may have multiple batches, images only for reference.

ELL-CTV3R9N

Name: ELL-CTV3R9N
Brand: Panasonic
SKU: 772281
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELL-CTV3R9N
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 3.9UH 5.6A 8.5 MOHM / Power Choke Shielded Wirewound 3.9uH 30% 100KHz Ferrite 5.6A 0.0085Ohm DCR T/R
Datasheet	ELL-CTV3R9N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Panasonic Electronic Components
Series	V
Type	Wirewound
Material - Core	Ferrite
Inductance	3.9μH
Tolerance	±30%
Current Rating	5.6A
Shielding	Shielded
DC Resistance (DCR)	8.5 mOhm
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum)	0.177" (4.50mm)
Win Source Part Number	772281-ELL-CTV3R9N
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ELLCTV
Introduction Date	March 08, 2005
ECCN	EAR99
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian ELL-CTV3R9N CAD Model

Alternative Products

Description

The Panasonic Electronic Components 710645 is a wirewound type inductor with a 3.9μH inductance and a current rating of 5.6A.

Inductance: 3.9μH
Current Rating: 5.6A
Shielding: Shielded
Tolerance: ±30%
Series: ELLCTV
Packaging: Nonstandard Package
DC Resistance (DCR): 8.5 mOhm
Mounting Type: SMD
Dimensions: 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height-Seated (Maximum): 0.177" (4.50mm)
Core Material: Ferrite
Packaging: Digi-Reel
Estimated EOL Date: Obsolete/End of Life
ECCN: EAR99
