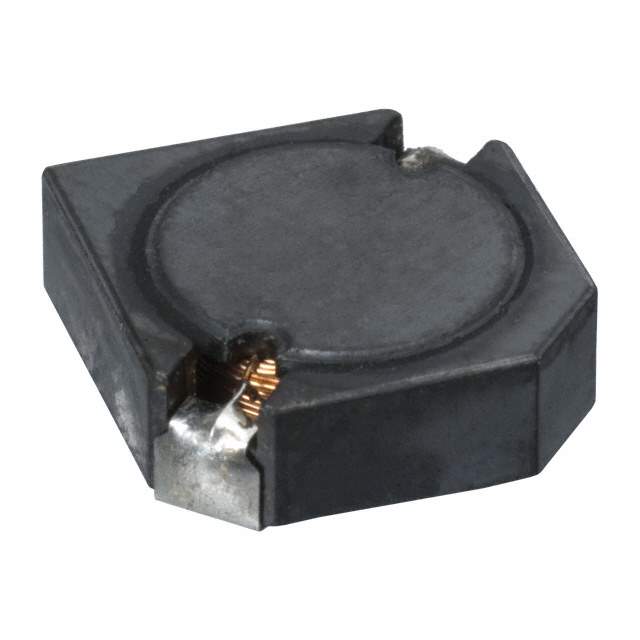

ELL-CTV470M Real Image1 ELL-CTV470M Real Image2
Same model may have multiple batches, images only for reference.
ELL-CTV470M Real Image1 ELL-CTV470M Real Image2
ELL-CTV470M Real Image1 ELL-CTV470M Real Image2
Same model may have multiple batches, images only for reference.

ELL-CTV470M

Part No ELL-CTV470M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 47UH 1.9A 69 MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 1.9 A 69mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic
Series V
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 1.9 A
Current - Saturation (Isat) -
Shielding Shielded
DC Resistance (DCR) 69mOhm
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number ELL-CTV
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 500 pcs
Win Source Part Number 1381998-ELL-CTV470M
Ultra Librarian 3D Model Ultra Librarian ELL-CTV470M CAD Model

Description

The ELL-CTV470M is a fixed inductor from the V series by Panasonic.

  • Inductance: 47 µH
  • Tolerance: ±20%
  • Core Material: Drum Core
  • Construction: Wirewound
  • Shielding: Shielded
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Size/Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.177" (4.50mm)
  • DCR: 69mOhm
  • Current Rating: 1.9 A
  • Temperature Range: Vendor Undefined
  • HTSUS: 8504.50.8000
  • MSL: 1 (Unlimited)
  • Status: Obsolete
  • Series: V
