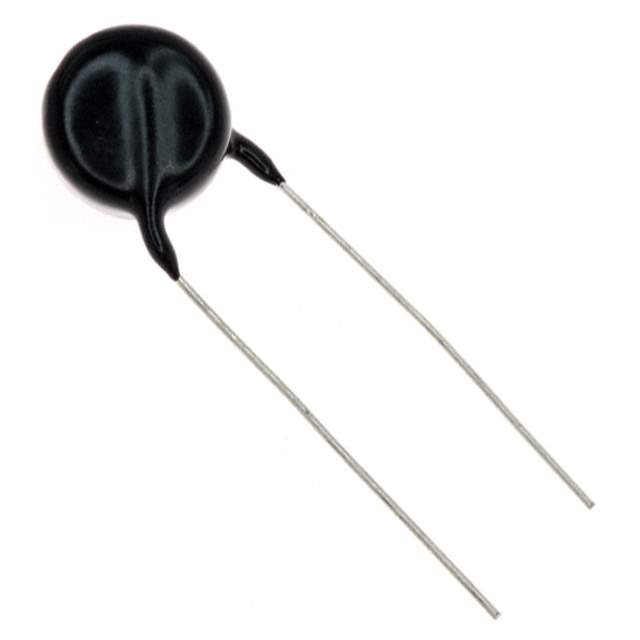

ERZ-V14D220 Real Image
Same model may have multiple batches, images only for reference.

ERZ-V14D220

Part No ERZ-V14D220
Manufacturer Panasonic
Catalog TVS - Varistors, MOVs
Description VARISTOR 22V 2KA DISC 14MM  /  22 V 2 kA Varistor 1 Circuit Through Hole Disc 15.5mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Panasonic Electronic Components
Series ZNR®
Package Bulk
Maximum AC Volts 14 V
Maximum DC Volts 18 V
Varistor Voltage (Min) 20 V
Varistor Voltage (Typ) 22 V
Varistor Voltage (Max) 24 V
Current - Surge 2 kA
Energy 6.3J
Number of Circuits 1
Capacitance @ Frequency 20000 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case Disc 15.5mm
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names P7307,P7307-NDR,ERZV14D220
Standard Package 50
Win Source Part Number 989027-ERZ-V14D220
Ultra Librarian 3D Model Ultra Librarian ERZ-V14D220 CAD Model

Description

The ZNR series varistors are designed for use in circuit protection applications such as TVS - Varistors and MOVs from Panasonic Electronic Components.

  • Series: ZNR
  • Package: Bulk
  • Standard Package Quantity: 50
  • Capacitance: 20000 pF @ 1 kHz
  • Varistor Voltage: 20V to 24V
  • Maximum AC Voltage: 14V
  • Maximum DC Voltage: 18V
  • Current Surge: 2 kA
  • Energy: 6.3J
  • Mounting: Through-Hole
  • Package/Case: Disc 15.5mm
  • Operating Temperature: -40°C to 85°C (TA)
