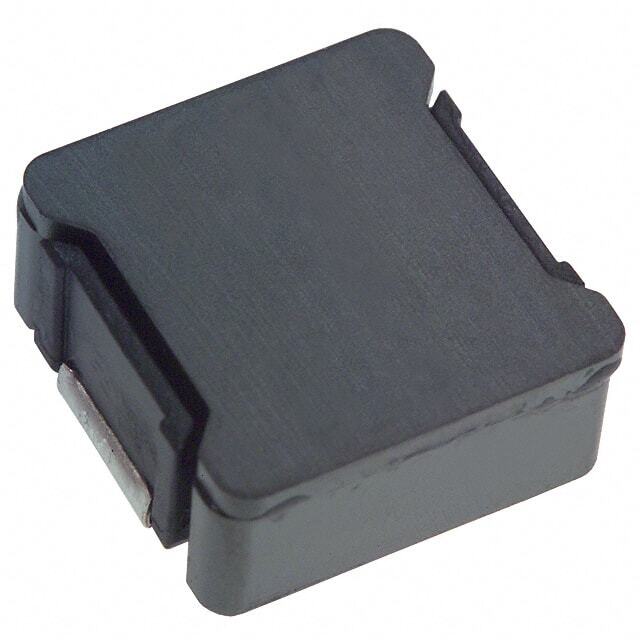

ETQ-PAF1R3EFA
Same model may have multiple batches, images only for reference.

ETQ-PAF1R3EFA

Part No ETQ-PAF1R3EFA
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 1.3UH 17.7A 1.56 MOHM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Panasonic
Series PCC-F179F (S1)
Package Tape & Reel
Product Status Obsolete
Inductance 1.3 µH
Tolerance ±30%
Current Rating (Amps) 17.7 A
Current - Saturation (Isat) 35.2A
Shielding Shielded
DC Resistance (DCR) 1.56mOhm Max
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Size / Dimension 0.677" L x 0.661" W (17.20mm x 16.80mm)
Height - Seated (Max) 0.354" (9.00mm)
Base Product Number ETQ-PAF
Standard Package 250 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 871273-ETQ-PAF1R3EFA
Ultra Librarian 3D Model Ultra Librarian ETQ-PAF1R3EFA CAD Model

Description

The PCC-F179F (S1) series fixed inductor, model ETQ-PAF1R3EFA, is a high-quality component suitable for various electronic applications. Bold the product name (e.g., BAV99S,135 → ETQ-PAF1R3EFA) and manufacturer (e.g., Nexperia USA Inc. → Panasonic).

  • Inductance: 1.3 μH
  • DC Resistance (DCR): 1.56mOhm
  • Feature: Shielded inductor
  • Installation: Surface mount
  • Package: 2-SMD, J-Lead package
  • Size Dimension: 0.677" L x 0.661" W (17.20mm x 16.80mm)
  • Height: 0.354" (9.00mm)
  • Series: PCC-F179F (S1) series
  • Status: Active product in the market
