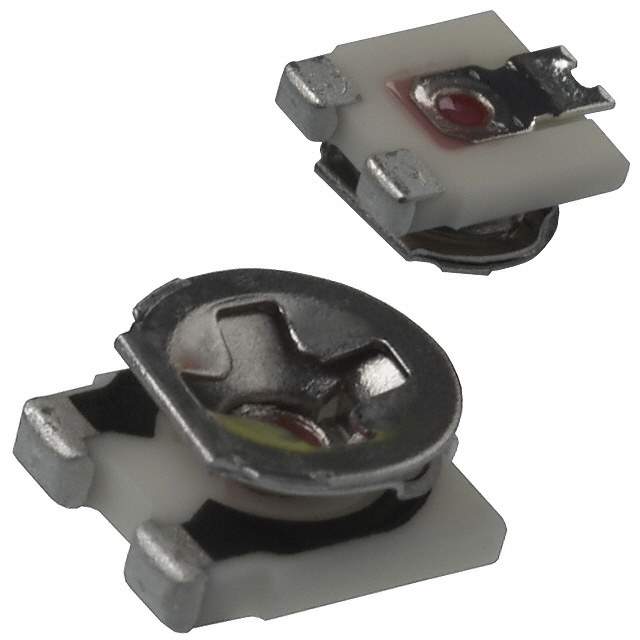

The EVM3VSX50B52 is a surface-mount trimming potentiometer manufactured by Panasonic. It is designed for fine-tuning and calibration in a variety of electronic circuits. These trimmers are used to adjust resistance values, which in turn affects circuit parameters such as voltage, current, and frequency. This particular model has a resistance value of 5K Ohms.

Applications:

• Calibration of electronic equipment
• Adjustment of audio equipment (volume, tone)
• Setting reference voltages in power supplies
• Fine-tuning of sensor circuits
• Control circuits for adjusting motor speed or light intensity

Features:

• Surface Mount Technology (SMT)
• Compact size
• High stability
• Sealed construction to resist dust and moisture
• Available in various resistance values
• RoHS compliant

Benefits:

• Precise resistance adjustment
• Easy to integrate into automated assembly processes due to SMT design
• Reliable performance over a wide temperature range
• Long lifespan due to robust construction
• Environmentally friendly due to RoHS compliance

Additional Details:

The EVM3VSX50B52 features a top adjustment, allowing for easy access and fine-tuning. It is designed to withstand the rigors of automated soldering processes. The trimmer's resistance element is made of a high-quality material that ensures minimal drift over time and temperature. The part's small size makes it ideal for applications where space is limited. It's commonly used in industrial equipment, consumer electronics, and automotive applications.

This potentiometer's resistance tolerance is typically around ±25%, which is standard for this type of component. The power rating is typically around 0.1W. The operating temperature range is generally from -40°C to +85°C, making it suitable for a wide range of environmental conditions. The expected rotational life is typically specified in terms of the number of cycles, ensuring long-term reliability.
