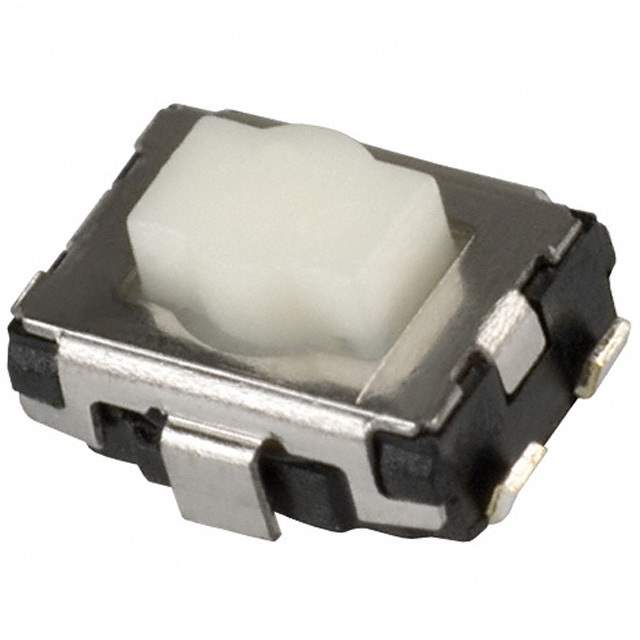

EVQ-P2P02M Real Image
Same model may have multiple batches, images only for reference.

EVQ-P2P02M

Part No EVQ-P2P02M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQP2
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.10mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.70mm x 3.50mm
Illumination Non-Illuminated
Operating Force 100gf
Features Grounding Pin
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number EVQ-P2
Other Names P12290SCTR,EVQP2P02M,P12290STRR,P12290STR,P12290SCT,P12290SDKR
Standard Package 4,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1232947-EVQ-P2P02M
Ultra Librarian 3D Model Ultra Librarian EVQ-P2P02M CAD Model

Description

The Panasonic Electronic Components EVQ-P2P02M is a SPST-NO Tactile Switch.

  • Contact Rating: 0.02A @ 15VDC
  • Operating Force: 100gf
  • Mechanical Life: 1,000,000 cycles
  • Temperature Range: -40°C ~ 85°C
  • Packaging: Tape & Reel
  • Outline: 4.70mm x 3.50mm
