Same model may have multiple batches, images only for reference.

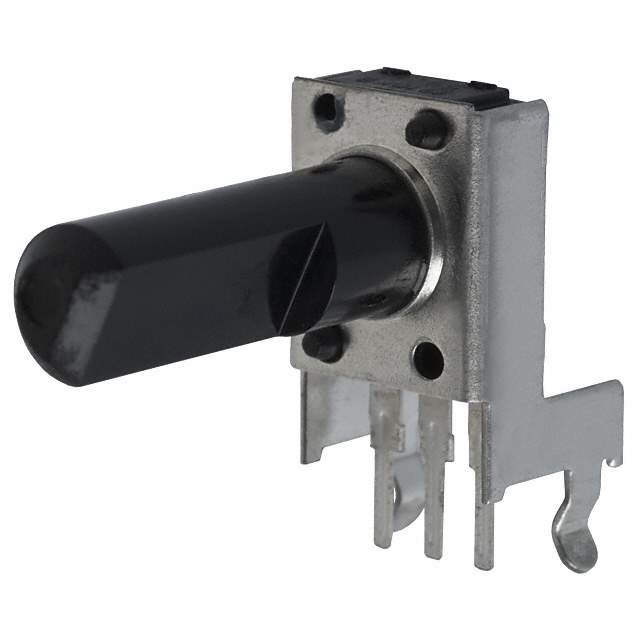

EVU-E2AF25D14 Real Image
Same model may have multiple batches, images only for reference.

EVU-E2AF25D14

Part No EVU-E2AF25D14
Manufacturer Panasonic
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 1/20W LOGARITHMIC / 10k Ohm 1 Gang Logarithmic Through Hole, Snap In Potentiometer None 1.0 Kierros 0.05W, 1/20W PC Pins, Board Locks
Datasheet
EVU-E2AF25D14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Manufacturer Panasonic Electronic Components
Packaging Bulk
Product Status Obsolete
Resistance (Ohms) 10k
Tolerance ±20%
Power (Watts) 0.05W, 1/20W
Built in Switch None
Number of Turns 1
Taper Logarithmic
Number of Gangs 1
Adjustment Type Side Adjustment
Rotation 300°
Termination Style PC Pins, Board Locks
Actuator Type Flatted
Actuator Length 0.717" (18.20mm)
Actuator Diameter 0.236" (6.00mm)
Mounting Through Hole, Snap In
Size - Body Rectangular - 0.453" x 0.374" Face (11.50mm x 9.50mm)
Base Product Number EVU-E2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8050
Other Part Number P3Q6103,P3Q6103-NDR,EVUE2AF25D14
Standard Package 1,200
Win Source Part Number 1325936-EVU-E2AF25D14
Ultra Librarian 3D Model Ultra Librarian EVU-E2AF25D14 CAD Model

Description

The Panasonic Electronic Components EVU-E2AF25D14 is a rotary potentiometer that is designed for use in a variety of electronic devices.

  • Taper: Logarithmic
  • Adjustment Type: Side
  • Actuator Type: Flatted
  • Resistance: 10k Ohms
  • Tolerance: ±20%
  • Power Rating: 0.05W (1/20W)
  • Status: Obsolete, Limited Supply and Demand
  • Package: Bulk
  • Standard Package: 1,200
