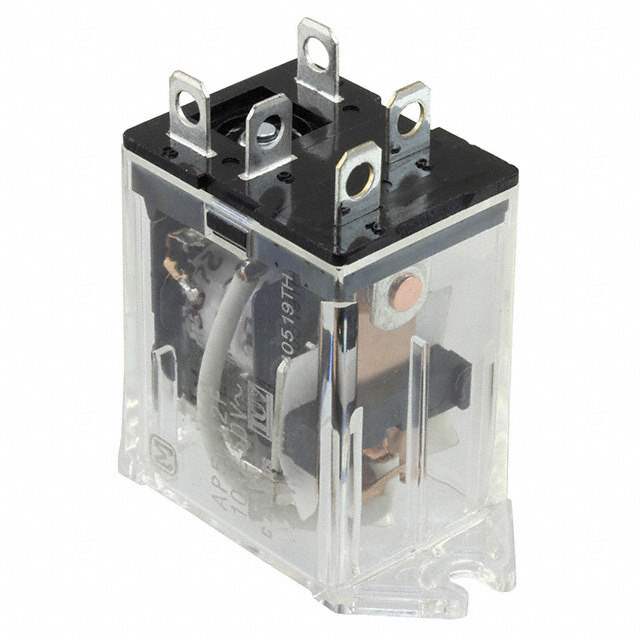

HL1-HTM-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

HL1-HTM-DC24V-F

Part No HL1-HTM-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 15A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 37mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15A
Switching Voltage 125VAC - Nom
Turn On Voltage (Max) 19.2 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 25ms
Release Time 25ms
Mounting Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Coil Power 900 mW
Coil Resistance 650 Ohms
Temperature Range - Operating -50°C to 70°C
Win Source Part Number 143593-HL1-HTM-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian HL1-HTM-DC24V-F CAD Model

Description

The Panasonic Electric Works HL1-HTM-DC24V-F is a general-purpose relay with a contact form of SPDT (1 Form C) and a coil voltage of 24VDC. The device has a contact rating of 15A and a switching voltage of 125VAC - Nom. It is designed for chassis mounting and has a coil resistance of 650 Ohms. The relay is non-latching and has a coil current of 37mA. The device is active and has a medium popularity. The package contains 20 relays.
